7344-15SUGC/S400-X6

Overview

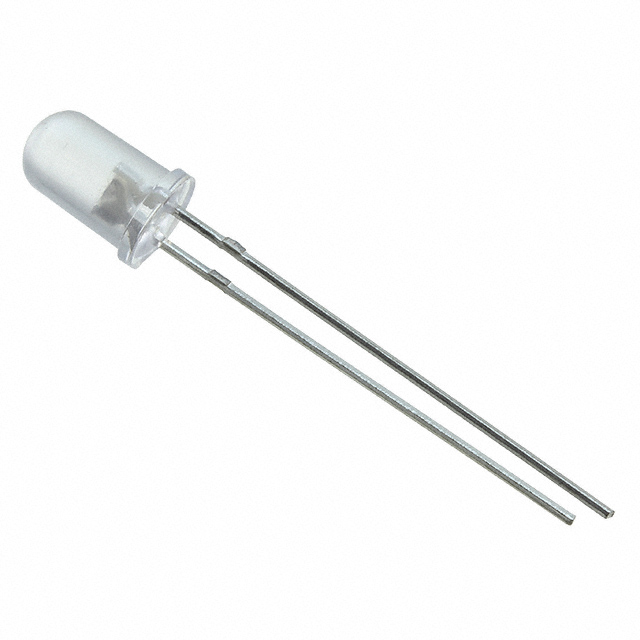

The 7344-15SUGC/S400-X6 is a single-color LED from Everlight Electronics, utilizing InGaN technology to produce Super Green light at a wavelength of 525nm. It features a 5mm round lamp head with a clear, domed top lens and a viewing angle of 20 degrees. The component operates at a forward current of 20mA with a typical forward voltage of 3.4V. It delivers an intensity of 11cd (11,000mcd) and is supplied in bulk packaging.

Feature Summary

• Emits Super Green light via InGaN semiconductor technology
• Features a 5mm round package with a water-clear domed lens
• Provides a narrow 20-degree viewing angle for focused indication

Applications

• Panel indicator lights
• Instrumentation status displays
• Consumer electronics power indicators

Procurement Notes

Verify the specific suffix X6 against official Everlight documentation to confirm binning and optical characteristics. Ensure compatibility with standard 5mm through-hole PCB footprints. Confirm that the bulk packaging quantity meets production requirements without additional handling constraints.

Selection Notes

Select this component when a bright, narrow-beam green indication is required. The 20-degree viewing angle suits applications needing directed visibility. Verify that the 3.4V forward voltage aligns with the driving circuit design. Consider the 5mm form factor for mechanical integration into existing enclosures.

Part Context

This part belongs to Everlight's standard 5mm LED series, designed for general-purpose visual signaling. The SUGC designation typically indicates Super Green color output. The product line utilizes InGaN materials for improved efficiency and stability compared to older technologies.

Replacement Considerations

Cross-reference with Everlight part numbers sharing the same 5mm round package and 525nm wavelength. Verify that substitute components match the 20-degree beam width and 11cd minimum intensity. Ensure electrical parameters such as forward voltage and current ratings are compatible.
