Edgeboard Connectors Overview

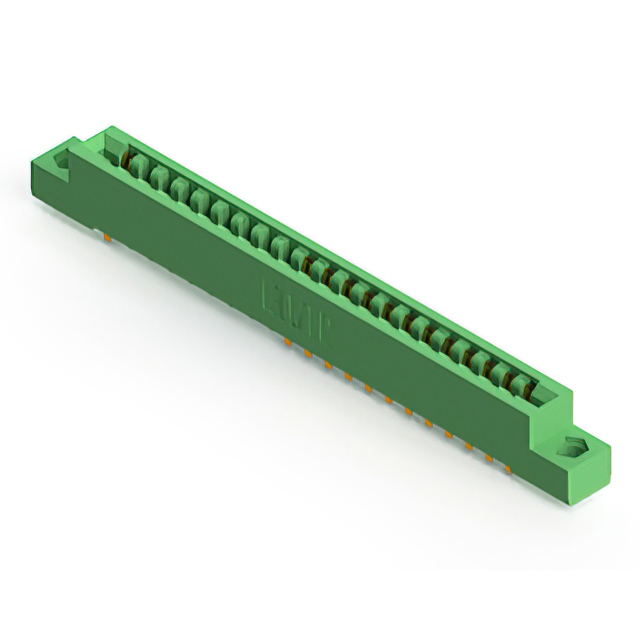

The EDAC Inc. 807-042-520-204 is a standard card edge connector receptacle designed for high-temperature applications. It features 42 positions arranged in a dual-row configuration with a 3.96 mm (0.156 inch) contact spacing. The unit utilizes gold-plated copper alloy contacts and a green Diallyl Phthalate (DAP) insulator. Rated for 5 A current, it supports PCB thicknesses of 1.57 mm and operates within a temperature range of -40 C to +125 C.

Edgeboard Connectors Feature Summary

• High-temperature rated construction suitable for demanding environments
• Dual-edge gold-plated contacts ensure reliable signal transmission
• Vertical panel mount installation style for secure integration

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Medical equipment utilizing EDAC medical interconnect solutions
• Agricultural technology hardware exposed to harsh conditions

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official EDAC datasheet to confirm pin count, tail length, and mounting orientation. Ensure the selected variant matches the required PCB thickness and operating temperature range for the target application environment.

Edgeboard Connectors Selection Notes

Select this component when a 42-position dual-row card edge interface is required. Confirm compatibility with the daughter board edge thickness and verify that the vertical panel mount form factor aligns with the mechanical enclosure design constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 807 Series, which specializes in high-temperature card edge connectors. The series provides standardized solutions for rugged applications, including medical and agricultural sectors, offering durable copper alloy contacts within a stable DAP insulator housing.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC cross-reference guide for verified substitutes. Ensure any alternative maintains the 3.96 mm pitch, 42-position count, and high-temperature rating specifications.
