896-046-558-207

Edgeboard Connectors Overview

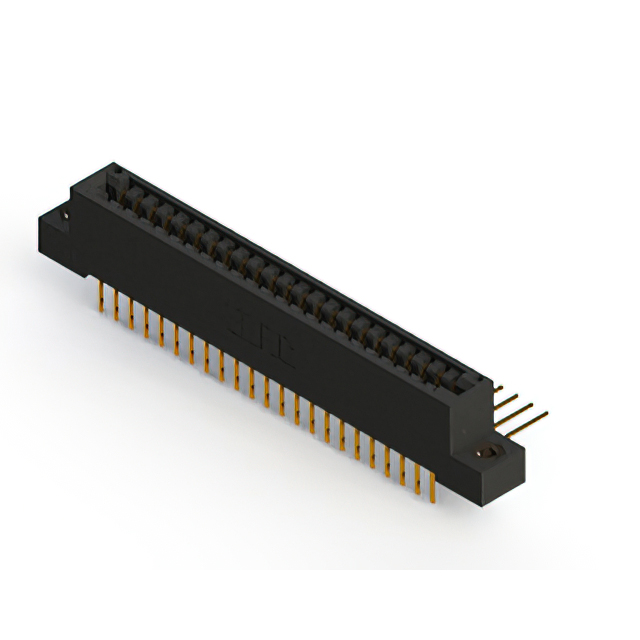

The EDAC Inc. part number 896-046-558-207 is a dual-edge female card edge connector designed for high-reliability applications. It features 46 positions arranged in two rows, with a pitch of 0.125 inches (3.18 mm). The connector utilizes gold-plated contacts to ensure stable signal transmission and corrosion resistance. It is constructed with a black insulating body and supports panel mount installation at a right angle. The component is rated for an operating temperature range from -40°C to 125°C, making it suitable for demanding environments.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration providing robust connection for double-sided circuit boards
• Gold-plated contact surfaces ensuring reliable conductivity and long-term durability
• Right-angle panel mount design facilitating efficient space utilization in enclosures

Edgeboard Connectors Applications

• Medical interconnect solutions requiring durable connections
• Agricultural technology equipment operating in harsh environments
• Industrial control systems needing reliable signal transmission

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffixes against the manufacturer's official datasheet to confirm exact pin count, plating thickness, and termination style. Ensure compatibility with the target PCB board thickness and mounting hole specifications before procurement. Cross-reference the RoHS compliance status with current regulatory requirements for the intended market.

Edgeboard Connectors Selection Notes

Select this connector when a dual-edge interface is required for double-sided cards. Consider the 0.125-inch pitch and right-angle orientation for mechanical fit within the assembly. Evaluate the thermal rating and contact material against the operational environment to ensure performance stability under varying conditions.

Edgeboard Connectors Part Context

This component belongs to the EDAC standard card edge connector series, which offers a comprehensive range of interconnect solutions. The 896 series is engineered for general-purpose and specialized applications, including medical and agricultural sectors. It represents a reliable option for connecting electronic modules where secure and consistent electrical contact is critical.

Edgeboard Connectors Replacement Considerations

Direct substitutes may include other EDAC dual-edge connectors with matching 46-position counts and 0.125-inch pitch. Verify mechanical dimensions and terminal configurations before substitution. Alternative manufacturers offering similar specifications should be evaluated for pin-to-pin compatibility and environmental ratings.
