AOC2411

Description：MOSFET P-CH 30V 3.4A 4WLCSP
Series：-
Mfr：Alpha & Omega Semiconductor Inc.
Package：Tape & Reel (TR)

SKU:34faf4aa8d07 Category: Single FETs, MOSFETs Brand: Alpha & Omega Semiconductor Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MOSFET P-CH 30V 3.4A 4WLCSP
Series：-
Mfr：Alpha & Omega Semiconductor Inc.
Package：Tape & Reel (TR)
FET Type：P-Channel
Technology：MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)：30 V
Current - Continuous Drain (Id) @ 25°C：3.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)：2.5V, 4.5V
Rds On (Max) @ Id, Vgs：45mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id：1.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs：20 nC @ 4.5 V
Vgs (Max)：±12V
Input Capacitance (Ciss) (Max) @ Vds：1630 pF @ 15 V
FET Feature：-
Power Dissipation (Max)：800mW (Ta)
Operating Temperature：-55°C ~ 150°C (TJ)
Grade：-
Qualification：-
Mounting Type：Surface Mount

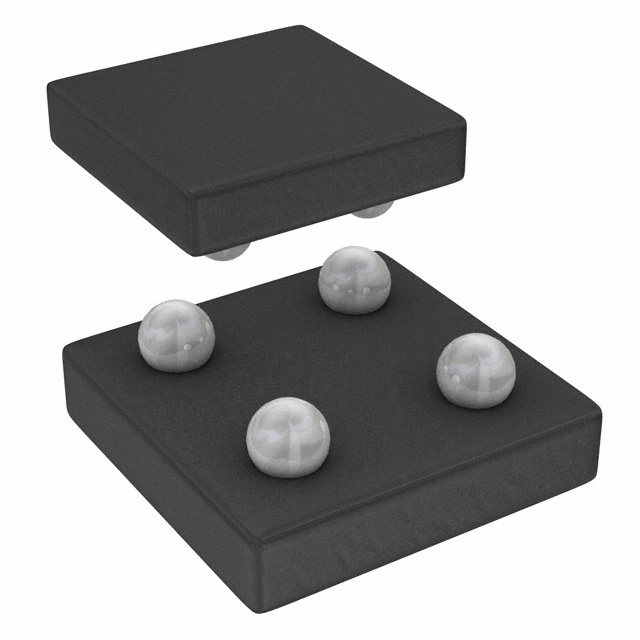

Supplier Device Package：4-WLCSP (1.6x1.6)
Package / Case：4-UFBGA, WLCSP

Download product information

AOC2411

Overview

The AOC2411 is a surface-mount P-channel MOSFET utilizing advanced trench technology. It features a drain-source voltage of -30V and a continuous source current of -3.4A at 25°C case temperature. The device offers low on-resistance, specified as less than 45mΩ at VGS=-4.5V and less than 60mΩ at VGS=-2.5V. It operates with gate voltages as low as 2.5V while maintaining a maximum gate-source voltage rating of ±12V. The component is housed in a WLCSP 1.6x1.6_4 package.

Feature Summary

Advanced trench technology provides excellent on-resistance and low gate charge characteristics.
Capable of operation with gate voltages as low as 2.5V for efficient drive requirements.
Retains a robust 12V maximum gate-source voltage rating despite low-voltage operation capability.

Applications

Consumer market electronic applications
Low voltage power switching circuits
Battery-powered device management

Procurement Notes

Verify the specific ordering suffix to ensure the correct package variant matches the design requirements. Confirm that the intended application aligns with the consumer market qualification, as critical life support uses are not authorized. Check datasheet revisions for any updates to electrical parameters or thermal characteristics before finalizing procurement specifications.

Selection Notes

Select this component when a compact P-channel solution is required for low-voltage switching applications. The WLCSP package suits space-constrained designs. Ensure the driving circuit can provide sufficient gate voltage to achieve the desired on-resistance levels. Consider the thermal limitations inherent to the small footprint for steady-state current handling.

Part Context

Alpha & Omega Semiconductor manufactures the AOC2411 as part of its discrete semiconductor portfolio. This product line focuses on providing high-performance power solutions using proprietary trench technologies. The company emphasizes reliability and efficiency in consumer and industrial electronic components.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify pinout compatibility and electrical ratings if considering alternative manufacturers' devices.
