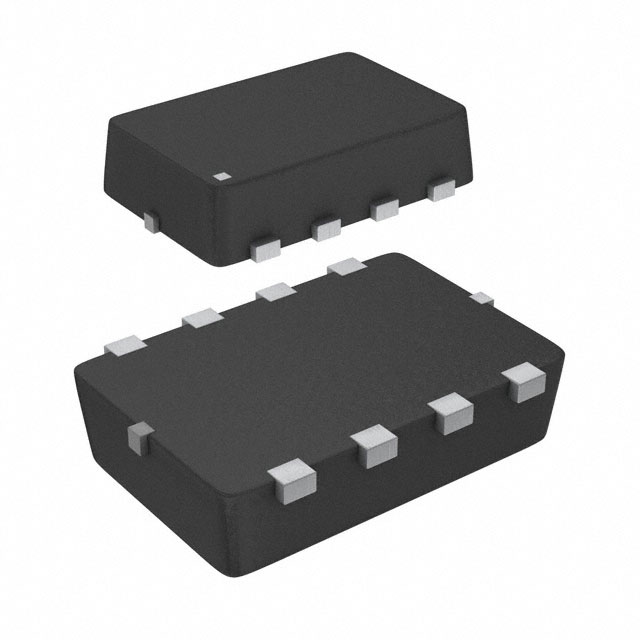

AON4605_001

Description：MOSFET N/P-CH 30V 4.3A/3.4A 8DFN
Series：-

SKU:78d7f9f55c4c Category: FET, MOSFET Arrays Brand: Alpha & Omega Semiconductor Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MOSFET N/P-CH 30V 4.3A/3.4A 8DFN
Series：-
Mfr：Alpha & Omega Semiconductor Inc.
Package：Bulk
Technology：MOSFET (Metal Oxide)
Configuration：N and P-Channel
FET Feature：Logic Level Gate
Drain to Source Voltage (Vdss)：30V
Current - Continuous Drain (Id) @ 25°C：4.3A, 3.4A
Rds On (Max) @ Id, Vgs：50mOhm @ 4.3A, 10V
Vgs(th) (Max) @ Id：2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs：5nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds：210pF @ 15V
Power - Max：1.9W
Operating Temperature：-55°C ~ 150°C (TJ)
Mounting Type：Surface Mount
Package / Case：8-SMD, Flat Leads
Supplier Device Package：8-DFN (3x2)
Grade：-
Qualification：-

Download product information

AON4605_001

Overview

The AON4605 is a complementary MOSFET array manufactured by Alpha & Omega Semiconductor Inc. It integrates one N-channel and one P-channel enhancement-mode field-effect transistor within a single package. The device supports a drain-source voltage (Vdss) of 30V for both channels. It is designed for surface-mount installation in applications requiring compact power switching solutions.

Feature Summary

Integrates complementary N-channel and P-channel MOSFETs in a single package
Supports 30V drain-source voltage rating
Enhancement-mode operation for efficient switching

Applications

DC-DC converter circuits
Power management modules
Battery protection systems

Part Context

The AON4605 belongs to the AON460x series of complementary MOSFETs from Alpha & Omega Semiconductor. This series includes related part numbers such as AON4602, AON4603, and AON4604, which share similar 30V complementary architectures but may differ in current ratings or package configurations.

Replacement Considerations

Publicly confirmed substitute part numbers for the AON4605 are not available in the provided documentation. Designers should consult official manufacturer resources for verified cross-reference data.
