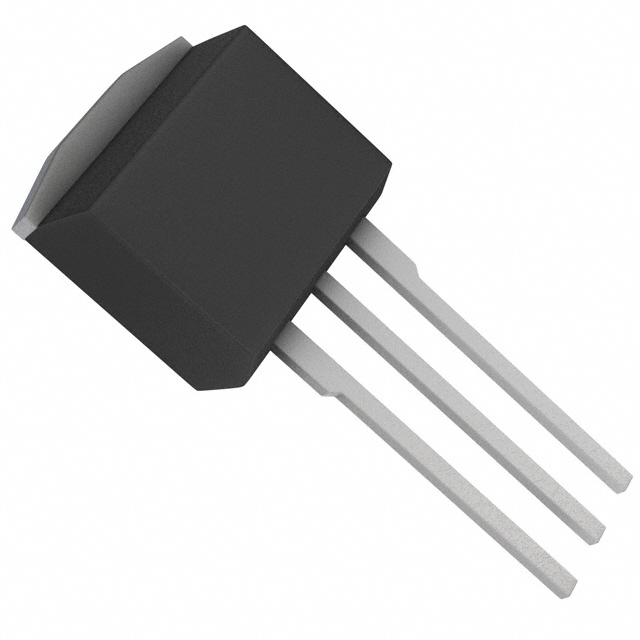

AOW2502

Description：MOSFET N-CH 150V 16A/106A TO262
Series：-
Mfr：Alpha & Omega Semiconductor Inc.
Package：Tube

SKU:5a00af109136 Category: Single FETs, MOSFETs Brand: Alpha & Omega Semiconductor Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AOW2502 is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists Alpha & Omega Semiconductor Inc.. Its product description is MOSFET N-CH 150V 16A/106A TO262. Review the specifications below when checking this part for your BOM.

Single FETs, MOSFETs specifications for AOW2502

Description：MOSFET N-CH 150V 16A/106A TO262
Series：-
Mfr：Alpha & Omega Semiconductor Inc.
Package：Tube
FET Type：N-Channel
Technology：MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)：150 V
Current - Continuous Drain (Id) @ 25°C：16A (Ta), 106A (Tc)
Drive Voltage (Max Rds On, Min Rds On)：10V
Rds On (Max) @ Id, Vgs：10.7mOhm @ 20A, 10V
Vgs(th) (Max) @ Id：5.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs：60 nC @ 10 V
Vgs (Max)：±20V
Input Capacitance (Ciss) (Max) @ Vds：3010 pF @ 75 V
FET Feature：-
Power Dissipation (Max)：6.2W (Ta), 277W (Tc)
Operating Temperature：-55°C ~ 150°C (TJ)
Grade：-
Qualification：-
Mounting Type：Through Hole
Supplier Device Package：TO-262
Package / Case：TO-262-3 Long Leads, I2PAK, TO-262AA

Single FETs, MOSFETs datasheet and documents for AOW2502

AOW2502

Single FETs, MOSFETs Overview

The AOW2502 is a 150V N-Channel MOSFET utilizing Alpha & Omega Semiconductor's Trench Power MV technology. It features a maximum drain-source voltage of 150V and a continuous drain current of 106A at VGS=10V. The device exhibits a static drain-source on-resistance of less than 10.7mΩ at VGS=10V. It is housed in a TO-262 tube package with a minimum order quantity of 1000.

Single FETs, MOSFETs Feature Summary

Trench Power MV technology for optimized fast-switching performance
Low gate charge characteristics to reduce switching losses
Guaranteed avalanche capability with 100% UIS testing

Single FETs, MOSFETs Applications

Synchronous rectification in DC/DC converters
Synchronous rectification in AC/DC converters
Industrial drive applications
Motor drive applications

Single FETs, MOSFETs Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm the exact package type and reel/tube configuration, as variations exist within the product line. Ensure the component meets RoHS compliance requirements for your target market. Confirm that the intended application falls within the consumer market scope, as critical life support uses are explicitly prohibited by the manufacturer.

Single FETs, MOSFETs Selection Notes

Select this component for designs requiring high current handling up to 106A with low conduction losses below 10.7mΩ. The TO-262 package provides robust thermal dissipation capabilities suitable for power-intensive environments. Consider the total gate charge of 60nC when designing gate drive circuits to ensure efficient switching transitions and minimize driver power consumption.

Single FETs, MOSFETs Part Context

This part belongs to the AOW series of N-Channel MOSFETs from Alpha & Omega Semiconductor. It is designed using advanced trench technology to deliver high performance in popular power conversion applications. The device is qualified for the consumer market and offers a balance of low on-resistance and fast switching speeds.
