APGF0606VGTPBTSEETC

LED Indication - Discrete Overview

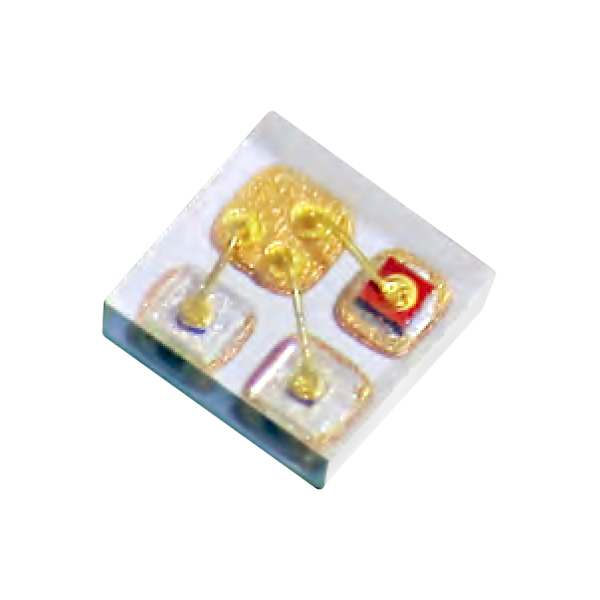

The APGF0606VGTPBTSEETC is a miniature bi-color surface-mount LED manufactured by Kingbright. It features an ultra-small footprint of 0.65mm x 0.65mm with a maximum height of 0.2mm, designed for applications with strict space constraints. The device utilizes a common cathode configuration and incorporates two distinct semiconductor chips within a single package to produce dual-color output. It operates at a low forward current of 5mA, ensuring minimal power consumption while delivering reliable visual indication.

LED Indication - Discrete Feature Summary

• Ultra-compact 0202 form factor suitable for designs with limited board space
• Bi-color capability using a common cathode structure for simplified circuit design
• Low power consumption optimized for battery-operated portable devices

LED Indication - Discrete Applications

• Backlighting and status indicators in wearable technology
• Visual signaling in disposable medical devices
• Indicator lights for portable consumer electronics
• Status display in industrial handheld instruments

LED Indication - Discrete Procurement Notes

Verify the specific color combination and binning requirements against the official datasheet before procurement. Confirm that the common cathode pinout aligns with the target PCB layout. Ensure handling procedures account for the sensitivity of miniature SMD components to mechanical stress during assembly.

LED Indication - Discrete Selection Notes

Select this component when physical dimensions are restricted to the 0202 envelope and a height profile under 0.2mm is mandatory. It is appropriate for designs requiring dual-color feedback without consuming multiple discrete LED footprints. Consider the 5mA drive current requirement for power budget calculations.

LED Indication - Discrete Part Context

This part belongs to Kingbright's APGF series of miniature LEDs, which are engineered for high-density surface mount applications. The series emphasizes reduced physical size compared to standard 0402 or 0603 packages, enabling greater component placement flexibility on printed circuit boards for modern compact electronic systems.

LED Indication - Discrete Replacement Considerations

Direct substitutes must match the 0.65mm x 0.65mm x 0.2mm footprint and common cathode bi-color configuration. Verify compatibility with existing reflow soldering profiles due to the small thermal mass. Cross-reference alternative manufacturers offering equivalent 0202 bi-color SMD LEDs if supply chain constraints exist.
