APT65GP60J

Overview

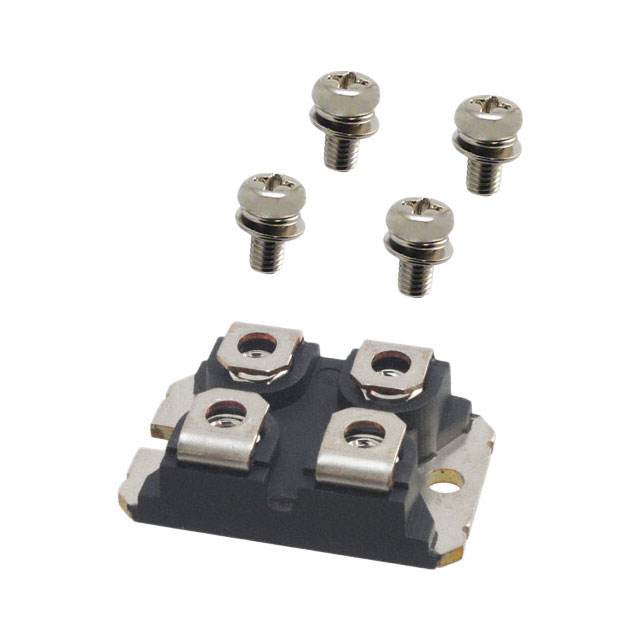

The APT65GP60J is a single IGBT module manufactured by Microchip Technology, utilizing silicon technology. It features a collector-emitter maximum voltage of 600 V and a collector-emitter saturation voltage of 2.2 V. The device supports a continuous collector current of 86 A at 25°C and has a power dissipation rating of 284 W. It operates within a temperature range of -55°C to +150°C. The component is housed in an ISOTOP-4 package with surface mount installation style.

Feature Summary

• Single configuration IGBT module
• ISOTOP-4 surface mount packaging
• Silicon-based construction

Applications

• Switch mode power supplies rectifier
• Induction heating

Procurement Notes

Verify the specific datasheet version for the APT65GP60J to confirm exact thermal characteristics and pinout compatibility before integration. Ensure that the ordering suffix matches the required package variant, as suffixes may indicate differences in terminal plating or specific manufacturing lot attributes without altering the core electrical function.

Selection Notes

Select this component for applications requiring a 600V rated single IGBT with moderate current handling capabilities. The ISOTOP-4 package facilitates surface mount assembly, which may simplify PCB layout compared to through-hole alternatives. Evaluate the 2.2 V saturation voltage against system efficiency requirements and ensure the thermal management design can handle the 284 W power dissipation rating under expected operating conditions.

Part Context

This part belongs to the Microchip IGBT module family, specifically designed for power conversion applications. It shares the 600V voltage class with other modules like the APT40GP60J but offers higher current capacity. The ISOTOP-4 package is common in this series for compact power designs.
