Product Detailed Parameters
- Description：MOSFET 6N-CH 600V 95A SP6-P
- Series：CoolMOS™
- Mfr：Microchip Technology
- Package：Tray
- Technology：MOSFET (Metal Oxide)
- Configuration：6 N-Channel (3-Phase Bridge)
- FET Feature：-
- Drain to Source Voltage (Vdss)：600V
- Current - Continuous Drain (Id) @ 25°C：95A
- Rds On (Max) @ Id, Vgs：24mOhm @ 47.5A, 10V
- Vgs(th) (Max) @ Id：3.9V @ 5mA
- Gate Charge (Qg) (Max) @ Vgs：300nC @ 10V
- Input Capacitance (Ciss) (Max) @ Vds：14400pF @ 25V
- Power - Max：462W
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：SP6
- Supplier Device Package：SP6-P
- Grade：-
- Qualification：-
Download product information
Overview

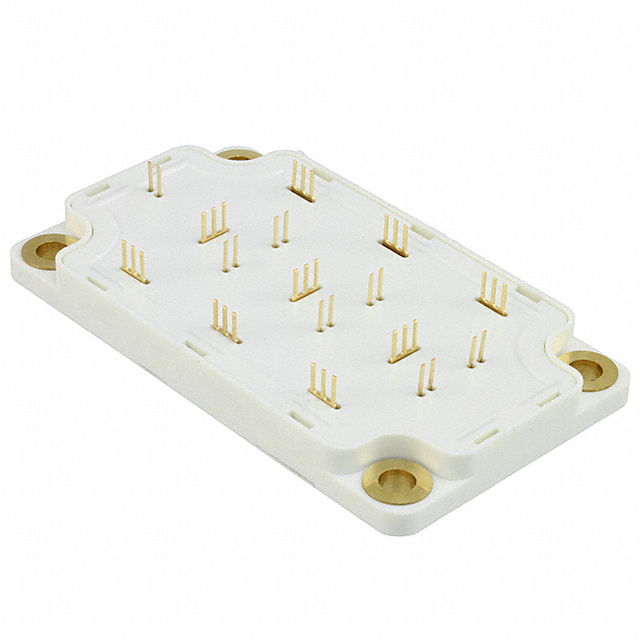

The APTC60TAM24TPG is a 600V N-channel MOSFET array from Microchip Technology's CoolMOS SP6P series. It features a three-phase bridge topology with six channels and an integrated NTC thermistor. The module utilizes press-in PCB electrical mounting for secure connection. Key parameters include a continuous drain current of 70A to 95A at 25°C, a maximum power dissipation of 462W to 625W, and a junction temperature range of -40°C to 150°C.
Feature Summary
- Integrates a three-phase bridge configuration with six N-channel MOSFETs in a single package
- Includes an embedded NTC thermistor for precise thermal monitoring
- Utilizes press-in PCB mounting technology for robust electrical connections
Applications
- High-power switching applications requiring three-phase control
- Industrial motor drive systems
- Power conversion circuits utilizing press-in PCB assembly methods
Procurement Notes
Verify the specific datasheet revision and errata documents provided by Microchip Technology, as specifications may vary between SP1 and SP6P module packages. Confirm that the procurement source is an authorized distributor to ensure component authenticity and traceability. Check for any product change notifications regarding the SP6P package or material composition prior to finalizing orders.
Selection Notes
Select this component when a compact three-phase solution with integrated thermal sensing is required. Ensure the application supports press-in PCB mounting techniques rather than traditional soldering. Compare the 70A/95A current ratings against system load requirements and verify that the 600V breakdown voltage aligns with the circuit's operating voltage levels.
Part Context
This part belongs to the APTC60 series of CoolMOS power modules designed for high-efficiency power electronics. It represents the SP6P package variant, which differs from earlier SP1 designs in mounting style and internal configuration. The series is engineered for industrial environments where reliability and thermal management are critical.
Replacement Considerations
Consult official Microchip documentation for confirmed substitute part numbers within the CoolMOS family. Verify compatibility of the press-in mounting interface and pinout configuration before replacing existing components.
