APTGF500U60D4G

Overview

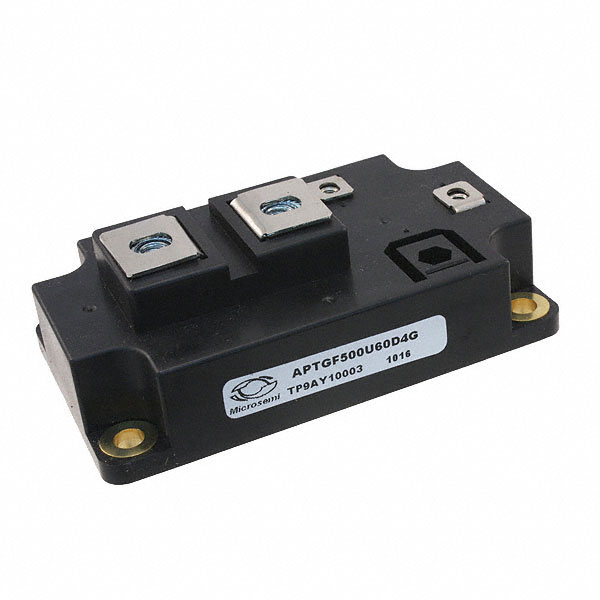

The APTGF500U60D4G is a single switch Non Punch Through (NPT) fast IGBT power module manufactured by Microchip Technology. It features a collector-emitter breakdown voltage of 600 V and a continuous collector current rating of 500 A at an 80°C case temperature. The device supports a pulsed collector current of 900 A and operates with a maximum junction temperature of 150°C. Electrical characteristics include a typical collector-emitter on-voltage of 2.45 V at 500 A and 25°C, and a diode forward voltage of 1.6 V at 600 A. The module utilizes M6 connectors for power terminals and M4 connectors for signal connections.

Feature Summary

• Non Punch Through (NPT) fast IGBT technology providing low voltage drop and low tail current
• Soft recovery parallel diodes designed to minimize reverse recovery charge and leakage current
• Kelvin emitter configuration included to facilitate easy gate drive circuitry
• Low stray inductance design achieved through dedicated M6 power and M4 signal connectors

Applications

• Welding converters
• Switched Mode Power Supplies
• Uninterruptible Power Supplies
• Motor control systems

Procurement Notes

Verify the component authenticity by checking the manufacturer markings against the official datasheet specifications. Confirm that the ordering suffix matches the required package and terminal configuration. Ensure proper electrostatic discharge handling procedures are followed during storage and installation to prevent damage to the sensitive semiconductor components.

Selection Notes

Select this module for applications requiring high-frequency operation up to 50 kHz. Consider the thermal resistance values when designing heatsinking solutions to maintain junction temperatures within safe limits. Evaluate the avalanche energy ratings and Safe Operating Area requirements to ensure the device can withstand transient load conditions without failure.

Part Context

This component belongs to the family of NPT IGBT power modules designed for robust performance in high-power electronic circuits. The specific model integrates both the switching transistor and the freewheeling diode into a single isolated package. This integration simplifies the assembly process while maintaining electrical isolation between the terminals and the mounting surface.

Replacement Considerations

When sourcing substitutes, verify that the replacement part maintains the same 600 V voltage rating and comparable current handling capabilities. Ensure the alternative module offers similar thermal resistance and physical dimensions to fit existing mechanical constraints. Confirm that the switching characteristics align with the original design parameters to avoid instability in the power stage.
