APTGF50VDA60T3G

Overview

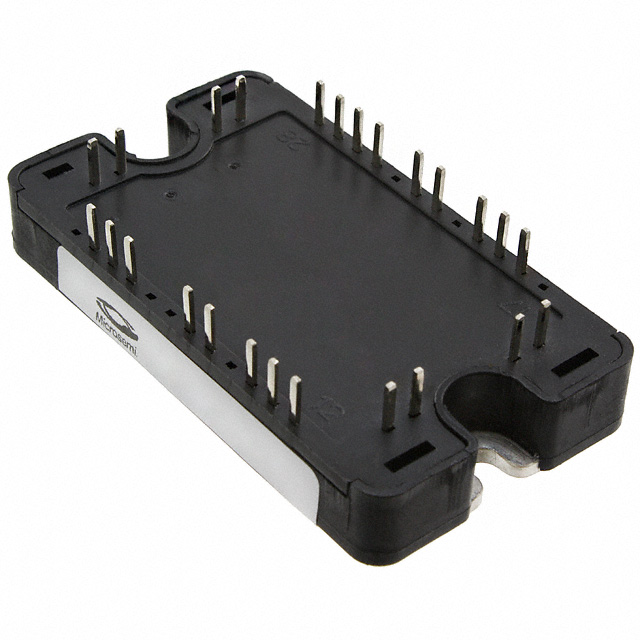

The APTGF50VDA60T3G is a dual boost chopper NPT IGBT power module manufactured by Microchip Technology. It features a collector-emitter breakdown voltage of 600 V and a continuous collector current rating of 50 A at a case temperature of 80°C, with a pulsed current capacity of 230 A. The device incorporates an internal NTC thermistor for temperature monitoring and utilizes the SP3 package. Electrical characteristics include a maximum collector-emitter saturation voltage of 2.45 V at 50 A and a gate threshold voltage ranging from 4 V to 6 V. The module supports switching frequencies up to 100 kHz and provides an RMS isolation voltage of 4000 V between terminals and the case.

Feature Summary

• Non-Punch Through (NPT) Fast IGBT technology providing low voltage drop and low tail current
• Soft recovery parallel diodes designed for low forward voltage and low leakage current
• Kelvin emitter configuration integrated for simplified drive circuit requirements
• Internal thermistor included for direct junction temperature monitoring

Applications

• AC and DC motor control systems
• Switched Mode Power Supplies (SMPS)
• Power Factor Correction (PFC) circuits
• Interleaved PFC topologies

Procurement Notes

Verify component authenticity through authorized Microchip Technology distributors or certified supply chain partners. Confirm that the specific ordering suffix matches the required package and thermal specifications. Ensure all handling procedures account for electrostatic discharge sensitivity as outlined in application note APT0502. Validate RoHS compliance status against current regulatory requirements before integration into final assemblies.

Selection Notes

Select this module for applications requiring high-frequency operation up to 100 kHz with symmetrical design characteristics. Consider the positive temperature coefficient of VCEsat when designing parallel configurations to ensure balanced current sharing. Evaluate the thermal resistance values against the expected heat dissipation requirements to maintain junction temperatures within the specified operating range of -40°C to 150°C.

Part Context

This component belongs to the APTGF series of dual boost chopper modules, specifically utilizing Non-Punch Through (NPT) IGBT technology. It is part of Microchip's portfolio of high-performance power modules designed for efficient energy conversion. The SP3 package variant offers a compact form factor suitable for direct heatsink mounting while maintaining electrical isolation.

Replacement Considerations

Consult official Microchip Technology documentation for verified substitute part numbers. Cross-referencing should be limited to components explicitly listed as compatible replacements in manufacturer datasheets or product change notifications.
