APTGT100A120D1G

Overview

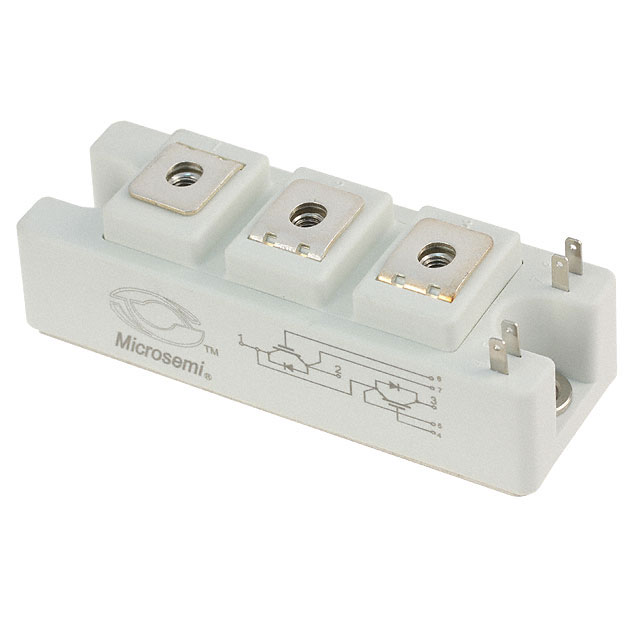

The APTGT100A120D1G is a phase leg Trench Field Stop IGBT power module manufactured by Microsemi Corporation. This component integrates high-voltage semiconductor switching capabilities within a robust industrial package design. It utilizes advanced trench gate technology to optimize conduction and switching performance for medium-power applications. The module structure supports efficient thermal management and reliable operation under demanding electrical conditions typical of modern power conversion systems.

Feature Summary

• Integrates Trench Field Stop IGBT technology for enhanced switching efficiency
• Designed as a phase leg configuration for bridge circuit implementations
• Constructed as a dedicated power module for industrial thermal environments

Applications

• Industrial motor drives
• Uninterruptible power supplies
• Medium voltage inverters

Procurement Notes

Verify the specific datasheet revision and ordering suffixes directly with authorized distributors or the manufacturer. Confirm that the component matches the required voltage and current ratings for the target application before procurement. Ensure compliance with RoHS directives if indicated in the official documentation.

Selection Notes

Select this module based on its specific voltage class and current handling capabilities relative to the system requirements. Evaluate the thermal resistance characteristics and mounting interface compatibility with the intended heatsink solution. Compare the switching speed and conduction losses against alternative devices in the same product family.

Part Context

This part belongs to the APTGT series of Trench Field Stop IGBT modules from Microsemi. The series includes various configurations with different current and voltage ratings, such as the APTGT300A60D3G and APTGT150A120D1G. These modules share common technological foundations while differing in specific electrical parameters and package variants.
