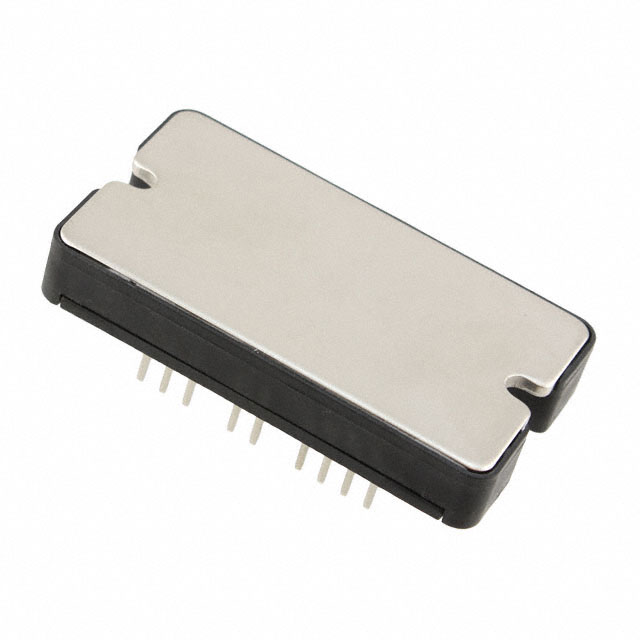

APTGT100TL60T3G

$70.90

Description：IGBT MODULE 600V 150A 340W SP3
Series：-

SKU:42579f884d2b Category: IGBT Modules Brand: Microchip Technology

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT MODULE 600V 150A 340W SP3
Series：-
Mfr：Microchip Technology
Package：Bulk
IGBT Type：Trench Field Stop
Configuration：Three Level Inverter
Vce(on) (Max) @ Vge, Ic：1.9V @ 15V, 100A
Input：Standard
NTC Thermistor：Yes
Operating Temperature：-40°C ~ 175°C (TJ)
Mounting Type：Chassis Mount
Package / Case：SP3
Supplier Device Package：SP3
Voltage - Collector Emitter Breakdown (Max)：600 V
Current - Collector (Ic) (Max)：150 A
Power - Max：340 W
Current - Collector Cutoff (Max)：250 µA
Input Capacitance (Cies) @ Vce：6.1 nF @ 25 V

Download product information

APTGT100TL60T3G

Overview

The APTGT100TL60T3G is a single IGBT module manufactured by Microchip Technology, utilizing silicon trench field-stop technology. It features a maximum collector-emitter voltage of 600 V and a continuous collector current of 150 A at 25°C. The device exhibits a typical collector-emitter saturation voltage of 1.5 V and a gate-emitter leakage current of 400 nA. With a power dissipation rating of 480 W, it operates within a junction temperature range of -40°C to +100°C. The component is housed in an SP6 package with screw mount installation.

Feature Summary

Single configuration IGBT module designed for high-power switching applications
Incorporates trench field-stop technology for optimized conduction and switching performance
Integrated NTC thermistor for precise thermal monitoring and protection

Applications

Industrial motor drives and inverters
Uninterruptible power supply (UPS) systems
High-frequency welding equipment

Procurement Notes

Verify the specific suffix T3G against official Microchip documentation to confirm pinout compatibility and internal circuit topology. Ensure the SP6 package dimensions match the target heatsink interface. Confirm RoHS compliance status through the manufacturer's latest datasheet revision before finalizing procurement specifications.

Selection Notes

Select this component when a single IGBT with 600V blocking capability and 150A continuous current is required. The SP6 package offers a balance between current handling and physical footprint. Verify that the thermal management system can dissipate up to 480W while maintaining the junction temperature within the specified operational limits.

Part Context

This part belongs to the APTGT series of IGBT modules from Microchip Technology. The series utilizes advanced trench field-stop technology to enhance efficiency. The APTGT100TL60T3G specifically provides a single switch configuration, distinguishing it from half-bridge or three-phase variants within the same voltage and current class.

Replacement Considerations

Consult Microchip's official cross-reference guides for verified substitutes. Direct replacements must maintain identical voltage ratings, current capabilities, and package form factors to ensure mechanical and electrical compatibility.
