Product Detailed Parameters
- Description：IGBT MODULE 600V 225A 480W SP1
- Series：-
- Mfr：Microchip Technology
- Package：Bulk
- IGBT Type：Trench Field Stop
- Configuration：Single
- Vce(on) (Max) @ Vge, Ic：1.9V @ 15V, 150A
- Input：Standard
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 175°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：SP1
- Supplier Device Package：SP1
- Voltage - Collector Emitter Breakdown (Max)：600 V
- Current - Collector (Ic) (Max)：225 A
- Power - Max：480 W
- Current - Collector Cutoff (Max)：250 µA
- Input Capacitance (Cies) @ Vce：9.2 nF @ 25 V
Download product information
Overview

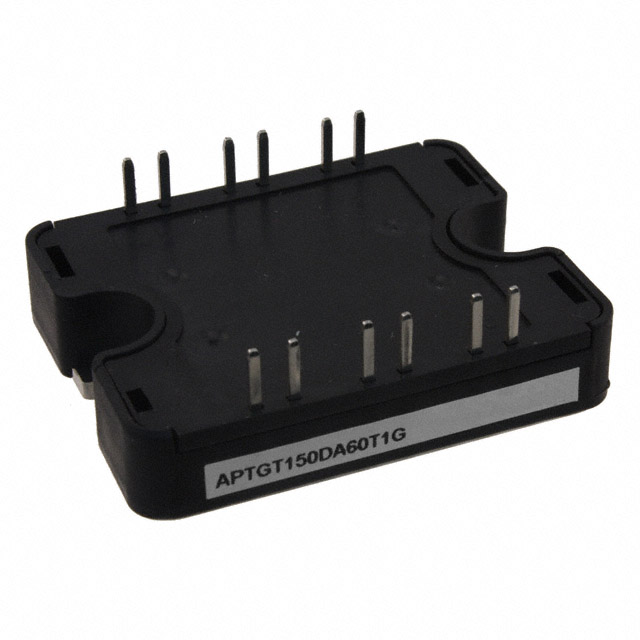

The APTGT150DA60T1G is a dual IGBT module manufactured by Microchip Technology, utilizing silicon technology. It features a maximum collector-emitter voltage (VCEO) of 600 V and a continuous collector current of 225 A at 25°C. The device exhibits a collector-emitter saturation voltage of 1.5 V and a power dissipation rating of 480 W. Designed for screw mount installation, it operates within a temperature range of -40°C to +100°C. The module is housed in an SP1-12 package with a unit weight of 80 g.
Feature Summary
- Dual configuration integrating two IGBTs within a single compact module structure.
- Utilizes trench field-stop technology for optimized switching performance and low conduction losses.
- Designed for robust thermal management with a dedicated baseplate for efficient heat dissipation.
Applications
- Industrial motor drives and variable frequency drives
- Uninterruptible power supplies (UPS) systems
- High-frequency welding equipment
Procurement Notes
Verify the specific suffix T1G against official Microchip documentation to confirm pinout compatibility and electrical characteristics. Ensure the SP1-12 package dimensions match the target heatsink interface. Confirm RoHS compliance status through the manufacturer's latest datasheet before integration into regulated products.
Selection Notes
Select this component for applications requiring a 600 V rating with high current capacity in a dual configuration. Compare the 1.5 V saturation voltage against system efficiency requirements. Evaluate the 480 W power dissipation limit against the available cooling solution to ensure safe operating temperatures under peak load conditions.
Part Context
This part belongs to the APTGT series of high-power IGBT modules from Microchip Technology. It shares the SP1-12 form factor with other variants in the family but differs in internal chip configuration and electrical ratings. The series is designed for industrial power conversion applications requiring reliable high-current switching capabilities.
Replacement Considerations
Direct substitutes include APTGT150A60T1G and APTGT150TA60PG, which share similar voltage and current ratings. Verify pin compatibility and thermal resistance values before substitution. Alternative packages such as SP3 or SP4 require mechanical redesign due to differing footprint dimensions.
