Product Detailed Parameters
- Description：IGBT MODULE 600V 500A 1250W D3
- Series：-
- Mfr：Microchip Technology
- Package：Bulk
- IGBT Type：Trench Field Stop
- Configuration：Single
- Vce(on) (Max) @ Vge, Ic：1.9V @ 15V, 400A
- Input：Standard
- NTC Thermistor：No
- Operating Temperature：-40°C ~ 175°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：D-3 Module
- Supplier Device Package：D3
- Voltage - Collector Emitter Breakdown (Max)：600 V
- Current - Collector (Ic) (Max)：500 A
- Power - Max：1250 W
- Current - Collector Cutoff (Max)：500 µA
- Input Capacitance (Cies) @ Vce：24 nF @ 25 V
Download product information
Overview

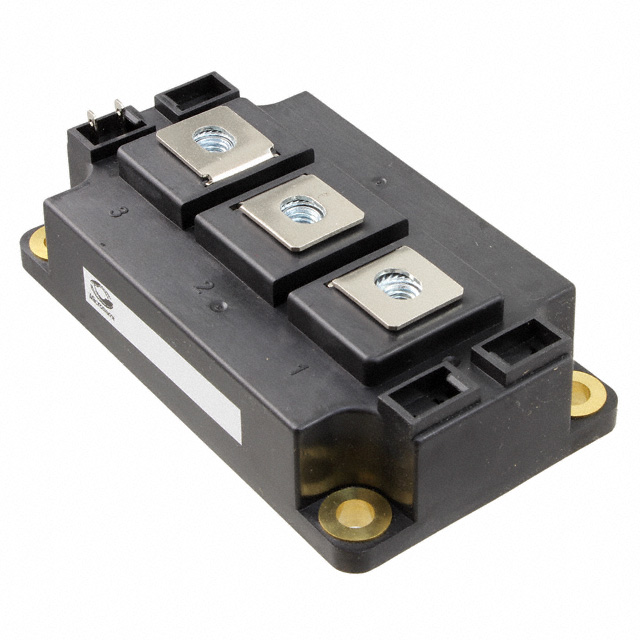

The APTGT400DA60D3G is a single IGBT module manufactured by Microchip Technology, utilizing silicon technology and housed in the D3-11 package. It features a maximum collector-emitter voltage of 600 V and a continuous collector current of 500 A at 25°C. The device exhibits a collector-emitter saturation voltage of 1.5 V and a power dissipation rating of 1.25 kW. Gate-emitter leakage current is specified at 400 nA, with a maximum gate-emitter voltage of 20 V. Operating temperatures range from -40°C to +125°C, and it supports screw mount installation.
Feature Summary
- Single configuration IGBT module designed for high-power applications
- Utilizes trench field-stop technology for optimized switching performance
- Robust thermal management capabilities with 1.25 kW power dissipation rating
Applications
- Industrial motor drives
- Uninterruptible power supplies (UPS)
- High-frequency welding equipment
Procurement Notes
Verify component authenticity through authorized Microchip Technology distributors or direct channels. Confirm RoHS compliance status via official datasheets before integration. Ensure proper handling procedures are followed due to sensitivity to electrostatic discharge during assembly processes.
Selection Notes
Select this module for applications requiring 600 V blocking capability and high current handling up to 500 A. Evaluate thermal interface materials to maintain junction temperature within the specified -40°C to +125°C operating range. Consider the D3-11 package dimensions for mechanical fitment and screw mounting requirements.
Part Context
This component belongs to the APTGT series of IGBT modules from Microchip Technology. It represents a specific variant within the PM-IGBT-TFS-D3 product line, distinguished by its single configuration and 600 V voltage rating. The D3-11 package provides a standardized form factor for industrial power electronics designs.
Replacement Considerations
Consult official Microchip Technology documentation for verified substitute part numbers. Cross-referencing should be performed based on matching electrical parameters, package type, and thermal characteristics to ensure functional compatibility.
