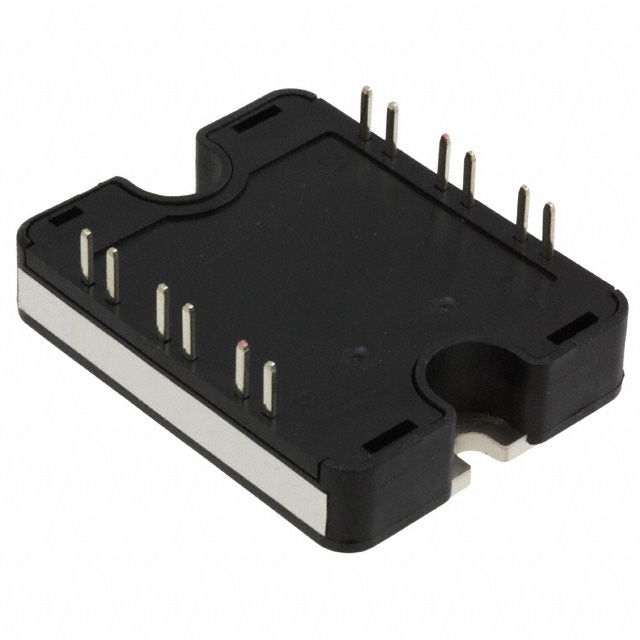

APTGT75A120T1G

$58.23

Description：IGBT MODULE 1200V 110A 357W SP1
Series：-

SKU:a8956feadda7 Category: IGBT Modules Brand: Microchip Technology

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT MODULE 1200V 110A 357W SP1
Series：-
Mfr：Microchip Technology
Package：Bulk
IGBT Type：Trench Field Stop
Configuration：Half Bridge
Vce(on) (Max) @ Vge, Ic：2.1V @ 15V, 75A
Input：Standard
NTC Thermistor：Yes
Operating Temperature：-40°C ~ 150°C (TJ)
Mounting Type：Chassis Mount
Package / Case：SP1
Supplier Device Package：SP1
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：110 A
Power - Max：357 W
Current - Collector Cutoff (Max)：250 µA
Input Capacitance (Cies) @ Vce：5.34 nF @ 25 V

Download product information

APTGT75A120T1G

Overview

The APTGT75A120T1G is a single IGBT module from Microchip Technology, utilizing silicon technology in an SP1 package. It features a maximum collector-emitter voltage of 1200 V and a continuous collector current of 110 A at 25°C. The device has a collector-emitter saturation voltage of 1.7 V and a power dissipation rating of 357 W. It supports screw mount installation with an operating temperature range from -40°C to +175°C.

Feature Summary

Single IGBT configuration within the PM-IGBT-TFS-SP1 series
High thermal stability supporting operation up to 175°C
Robust mechanical design for chassis or screw mounting

Applications

Industrial motor drives
Power supply inverters
Welding equipment

Procurement Notes

Verify component authenticity through authorized Microchip distributors. Confirm RoHS compliance status via official documentation. Ensure storage conditions maintain integrity prior to assembly. Cross-reference datasheet revisions for any parameter updates before finalizing procurement specifications.

Selection Notes

Select this module for applications requiring high voltage blocking capability and moderate current handling. Consider the SP1 package dimensions for thermal management and mechanical integration. Evaluate gate drive requirements against the specified maximum ratings to ensure reliable switching performance in the target circuit topology.

Part Context

This component belongs to the APTGT series of Trench Field Stop IGBT modules. It represents a specific voltage and current variant within the broader portfolio of discrete power modules designed for efficient power conversion and control in demanding electronic systems.

Replacement Considerations

Consult official substitution guides for compatible alternatives. Verify pinout compatibility and electrical parameters when considering cross-brand replacements.
