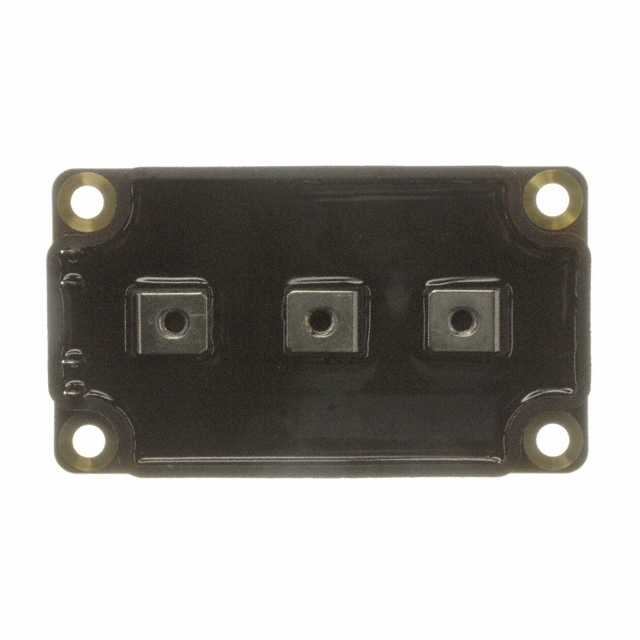

APTM20AM04FG

$303.37

Description：MOSFET 2N-CH 200V 372A SP6
Series：-

SKU:44a9563090e6 Category: FET, MOSFET Arrays Brand: Microchip Technology

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MOSFET 2N-CH 200V 372A SP6
Series：-
Mfr：Microchip Technology
Package：Bulk
Technology：MOSFET (Metal Oxide)
Configuration：2 N-Channel (Half Bridge)
FET Feature：-
Drain to Source Voltage (Vdss)：200V
Current - Continuous Drain (Id) @ 25°C：372A
Rds On (Max) @ Id, Vgs：5mOhm @ 186A, 10V
Vgs(th) (Max) @ Id：5V @ 10mA
Gate Charge (Qg) (Max) @ Vgs：560nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds：28900pF @ 25V
Power - Max：1250W
Operating Temperature：-40°C ~ 150°C (TJ)
Mounting Type：Chassis Mount
Package / Case：SP6
Supplier Device Package：SP6
Grade：-
Qualification：-

Download product information

APTM20AM04FG

Overview

The APTM20AM04FG is a single N-channel MOSFET module from the Microchip POWER MOS 7 series, housed in an SP-6 package. It features a 200V drain-source breakdown voltage and supports a continuous drain current of 372A with a maximum on-resistance of 4 milliohms. The device handles up to 1.25kW power dissipation and operates within a junction temperature range of -40°C to +150°C.
