APTMC120AM08CD3AG

Overview

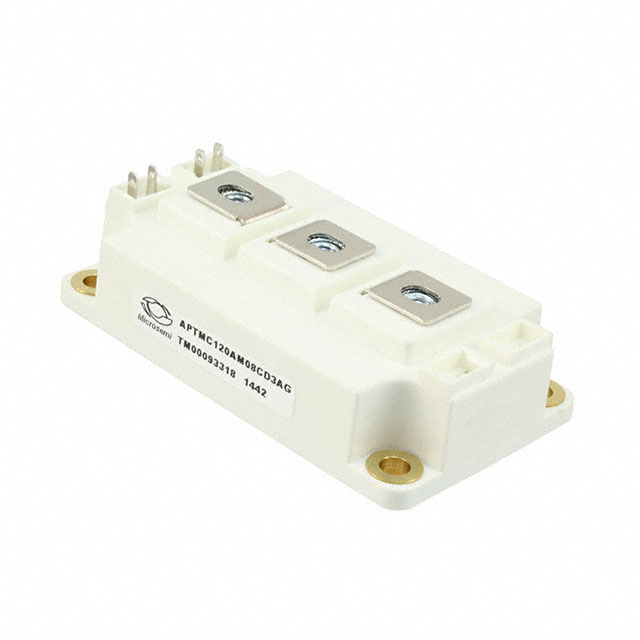

The APTMC120AM08CD3AG is a discrete semiconductor module manufactured by Microchip Technology, utilizing Silicon (Si) technology. It is classified as a MOSFET module with a 2N-CH configuration, rated for 1200V and 250A. The component features the D3 package style and is designed for high-power applications requiring robust switching capabilities.

Feature Summary

• High current handling capability of 250A
• 1200V voltage rating for high-voltage systems
• D3 package design for efficient thermal management

Applications

• Industrial motor drives
• Power supply units
• Inverter systems

Procurement Notes

Verify the specific datasheet version and technical parameters directly from Microchip Technology before procurement. Confirm that the D3 package dimensions and pinout match your PCB or chassis design requirements. Ensure compliance with RoHS standards if applicable to your manufacturing process. Cross-reference the part number with official distributors to avoid counterfeit components.

Selection Notes

Select this module when high current capacity and 1200V blocking voltage are required in a compact form factor. The D3 package offers specific mounting and thermal characteristics suitable for power electronics. Evaluate the thermal resistance and switching speed against your system's efficiency targets. Consider the 2N-CH topology for bridge configurations in power conversion circuits.

Part Context

This component belongs to Microchip Technology's discrete semiconductor modules portfolio. It is part of the broader category of power MOSFETs designed for industrial and automotive applications. The D3 package is a standard form factor used in various high-power modules within the manufacturer's lineup.

Replacement Considerations

Consult Microchip Technology's official documentation for direct replacements or updated versions. Verify compatibility with existing thermal and electrical designs before substituting.
