ASC2406C

Overview

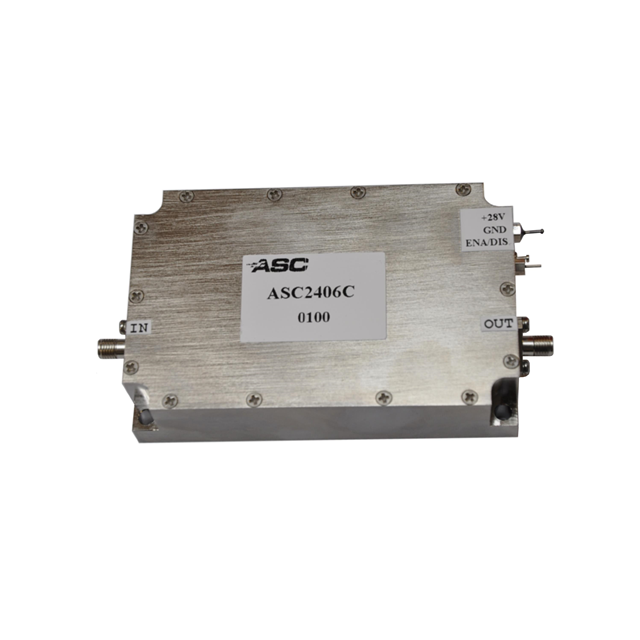

The ASC2406C is a broadband RF power amplifier manufactured by Amplifier Solutions Corp. It operates within a frequency range of 200 MHz to 1800 MHz and delivers a typical gain of 38 dB with a minimum of 35 dB. The device provides a saturated output power (Psat) of 10 W at +28 VDC. Key electrical specifications include a noise figure of 7 dB, an IP3 of 35 dBm, and a maximum operating current of 1000 mA. It features SMA-F connectors and requires no external components for operation.

Feature Summary

• Broadband amplification capability across the 200 MHz to 1800 MHz spectrum
• High power output performance with 10 W saturated power
• Integrated design requiring no external components
• Simple TTL logic control for on/off switching

Applications

• Base station transmitter modules
• Test and measurement equipment signal generation
• Military communication systems
• Industrial RF heating applications

Procurement Notes

Verify the specific revision level and connector orientation upon order confirmation. Confirm that the +28 VDC power supply meets the required stability and ripple specifications to ensure optimal Psat and linearity. Ensure the input drive level does not exceed 7 dBm to prevent damage to the internal circuitry during installation.

Selection Notes

Select this component when a wide bandwidth covering HF through UHF bands is required alongside high output power. The 38 dB gain reduces the need for preceding driver stages in certain architectures. Consider the thermal management requirements as the unit draws 1000 mA at full power without active cooling provisions.

Part Context

This model belongs to the ASC series of high-power RF amplifiers from Amplifier Solutions Corp. These units are designed for robust performance in demanding environments. The ASC2406C specifically targets applications needing significant power gain over a multi-octave bandwidth without complex matching networks.

Replacement Considerations

No direct public substitutes are documented. Evaluate alternatives based on matching the 200-1800 MHz bandwidth, 10 W output power, and +28 VDC operating voltage constraints.

FAQ

How is the ASC2406C turned on and off?

The amplifier uses a TTL control interface where applying 0V turns the device on, and applying +5V turns it off.

What is the maximum safe RF input power?

The maximum RF input power protection limit is 7 dBm. Exceeding this may damage the amplifier.

Does the ASC2406C require external matching components?

No, the datasheet specifies that no external components are required for operation.
