Product Detailed Parameters

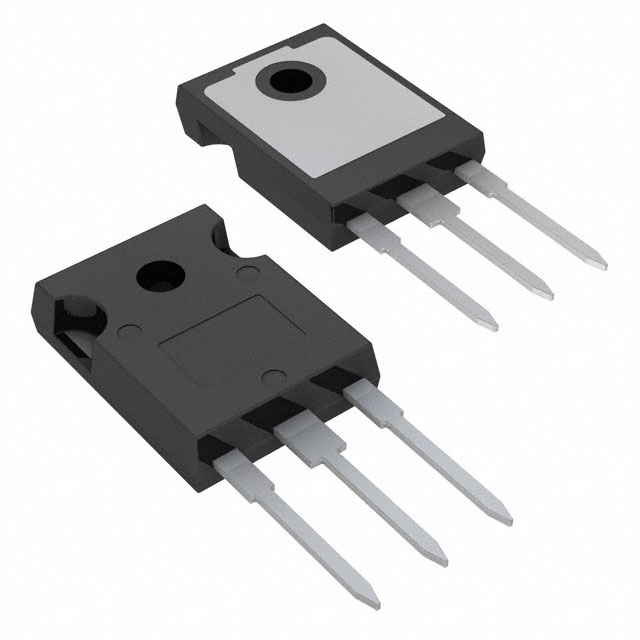

- Description：IGBT 1200V 141A TO-247AC
- Series：-
- Mfr：Infineon Technologies
- Package：Tube
- IGBT Type：-
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：141 A
- Current - Collector Pulsed (Icm)：99 A
- Vce(on) (Max) @ Vge, Ic：1.7V @ 15V, 33A
- Power - Max：543 W
- Switching Energy：16mJ (off)
- Input Type：Standard
- Gate Charge：227 nC
- Td (on/off) @ 25°C：-/616ns
- Test Condition：600V, 33A, 5Ohm, 15V
- Reverse Recovery Time (trr)：-
- Operating Temperature：-55°C ~ 150°C (TJ)
- Mounting Type：Through Hole
- Package / Case：TO-247-3
- Supplier Device Package：TO-247AC
- Grade：-
- Qualification：-
Download product information
FAQ
Is the AUIRG4PH50S-205 a standard or automotive-grade component?
The 'AU' prefix indicates that this component is an automotive-grade device, typically requiring qualification to standards such as AEC-Q101.
What does the suffix '-205' denote for this part number?
The suffix specifies the specific packaging configuration and reel quantity provided by the manufacturer for this orderable part number.
