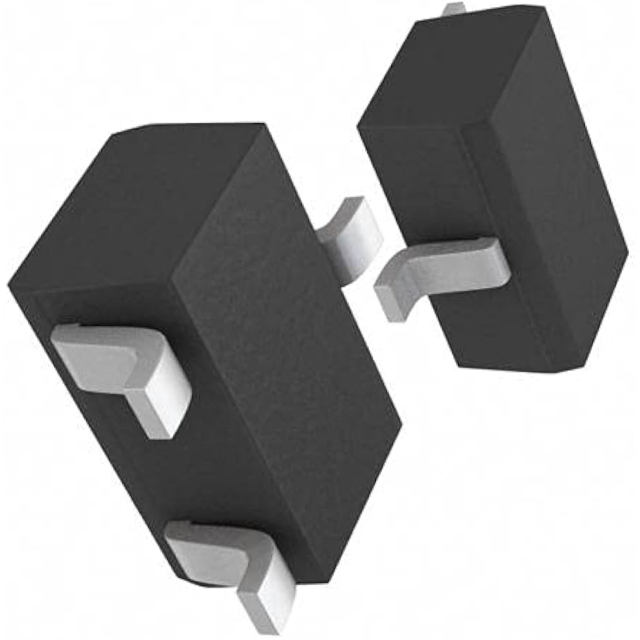

BC817-25W

$0.10

Description：45V 200MW 160@100MA,1V 500MA NPN
Series：-

SKU:83f5dfb74b5f Category: Single Bipolar Transistors Brand: Shenzhen Slkormicro Semicon Co., Ltd.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：45V 200MW 160@100MA,1V 500MA NPN
Series：-
Mfr：Shenzhen Slkormicro Semicon Co., Ltd.
Package：Tape & Reel (TR),Cut Tape (CT)
Transistor Type：NPN
Current - Collector (Ic) (Max)：500 mA
Voltage - Collector Emitter Breakdown (Max)：45 V
Vce Saturation (Max) @ Ib, Ic：700mV @ 50mA, 500mA
Current - Collector Cutoff (Max)：100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce：160 @ 100mA, 1V
Power - Max：300 mW
Frequency - Transition：100MHz
Operating Temperature：150°C (TJ)
Mounting Type：Surface Mount
Package / Case：TO-236-3, SC-59, SOT-23-3
Supplier Device Package：SOT-23
Grade：-
Qualification：-

Download product information

BC817-25W

Overview

The BC817-25W is an NPN general-purpose transistor manufactured by Shenzhen Slkormicro Semicon Co., Ltd. It features a maximum collector-emitter voltage (VCEO) of 45 V and a continuous collector current (IC) of 500 mA. The device utilizes the SOT323 surface-mount package, also designated as SC-70 in JEITA standards. This component serves as a high-current switching and amplification element within compact electronic designs.

Feature Summary

High current handling capability for general-purpose applications
Compact SOT323 (SC-70) surface-mount plastic package
Three available current gain selections

Applications

General-purpose switching circuits
Amplification stages
Complementary pairs with BC807-25W

Procurement Notes

Verify manufacturer origin carefully. While Nexperia defines the BC817-25W specification, confirm if Slkormicro produces this specific suffix variant or if it is a cross-reference. Ensure the datasheet matches the 45V/500mA ratings and SOT323 footprint before integration.

Selection Notes

Select this component when a small SMD NPN transistor with 500mA capacity is required. The -25 suffix indicates a specific DC current gain range. Verify compatibility with the complementary PNP BC807-25W if push-pull configurations are needed. Check thermal constraints for the SOT323 package.

Part Context

The BC817 series comprises NPN general-purpose transistors. The BC817-25W specifically denotes the SOT323 package variant with defined gain characteristics. It is part of a family including BC817-16W and BC817-40W, offering different gain bands for varied circuit requirements.
