BC869,115

Overview

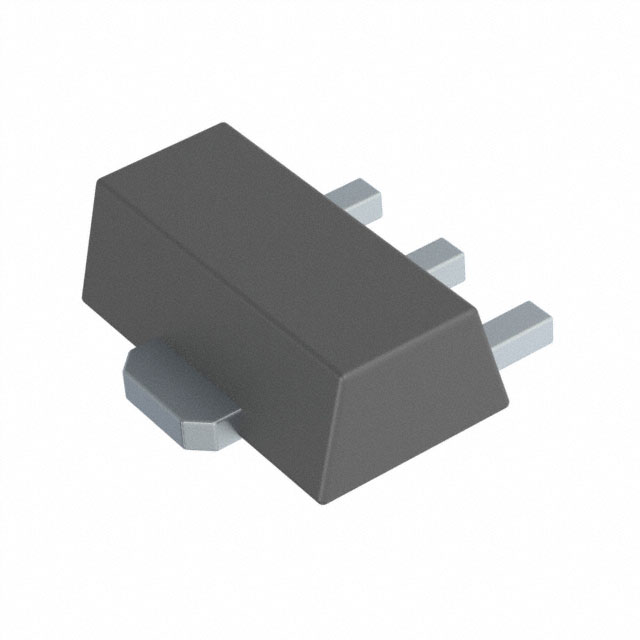

The BC869,115 is a PNP medium power transistor manufactured by Nexperia. It utilizes silicon technology and is housed in an SOT-89 (SC-62) surface-mount package with three terminals. Key electrical ratings include a maximum collector-emitter voltage of 20 V, a continuous collector current of 2 A, and a total power dissipation of 1.3 W. The device features a gain-bandwidth product of 100 MHz and a collector-emitter saturation voltage of 400 mV at specified currents.

Feature Summary

• Features an exposed heatsink for enhanced thermal conductivity and high power dissipation capability.
• Available with three distinct current gain selections to accommodate various circuit requirements.
• Complies with AEC-Q101 automotive qualification standards for reliability.

Applications

• Linear voltage regulators
• High-side switches
• MOSFET drivers

Procurement Notes

Verify the specific suffix against official Nexperia documentation to confirm package type and tape-and-reel specifications. Ensure the selected variant meets the required current gain binning for the target application. Cross-reference the datasheet revision date to confirm compliance with current environmental directives and material declarations before finalizing procurement.

Selection Notes

Select this component when a robust PNP switch or amplifier stage requires high current handling within a compact SMD footprint. The exposed pad design makes it suitable for applications demanding efficient heat transfer without increasing board space. Consider the available gain grades to optimize performance in linear regulation or switching driver circuits where precise control characteristics are necessary.

Part Context

This part belongs to the BC69PA series of PNP medium power transistors designed for surface-mount applications. It serves as a modern alternative to older through-hole counterparts, offering improved thermal performance through its leadless plastic package design. The series is engineered for use in consumer electronics and industrial equipment requiring reliable power management solutions.

Replacement Considerations

Officially documented substitutes include BCP69 and BC69PA. Verify pinout compatibility and thermal resistance values when substituting to ensure circuit integrity.
