BLA1011S-200R,112

$325.22

Description：RF MOSFET LDMOS 36V SOT502B
Series：-

SKU:d73f2ca44333 Category: RF FETs, MOSFETs Brand: Ampleon USA Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF MOSFET LDMOS 36V SOT502B
Series：-
Mfr：Ampleon USA Inc.
Package：Bulk
Technology：LDMOS
Frequency：1.03GHz ~ 1.09GHz
Gain：13dB
Voltage - Test：36 V
Current Rating (Amps)：-
Noise Figure：-
Current - Test：150 mA
Power - Output：200W
Voltage - Rated：75 V
Grade：-
Qualification：-
Mounting Type：Chassis Mount
Package / Case：SOT-502B
Supplier Device Package：SOT502B
Configuration：-

Download product information

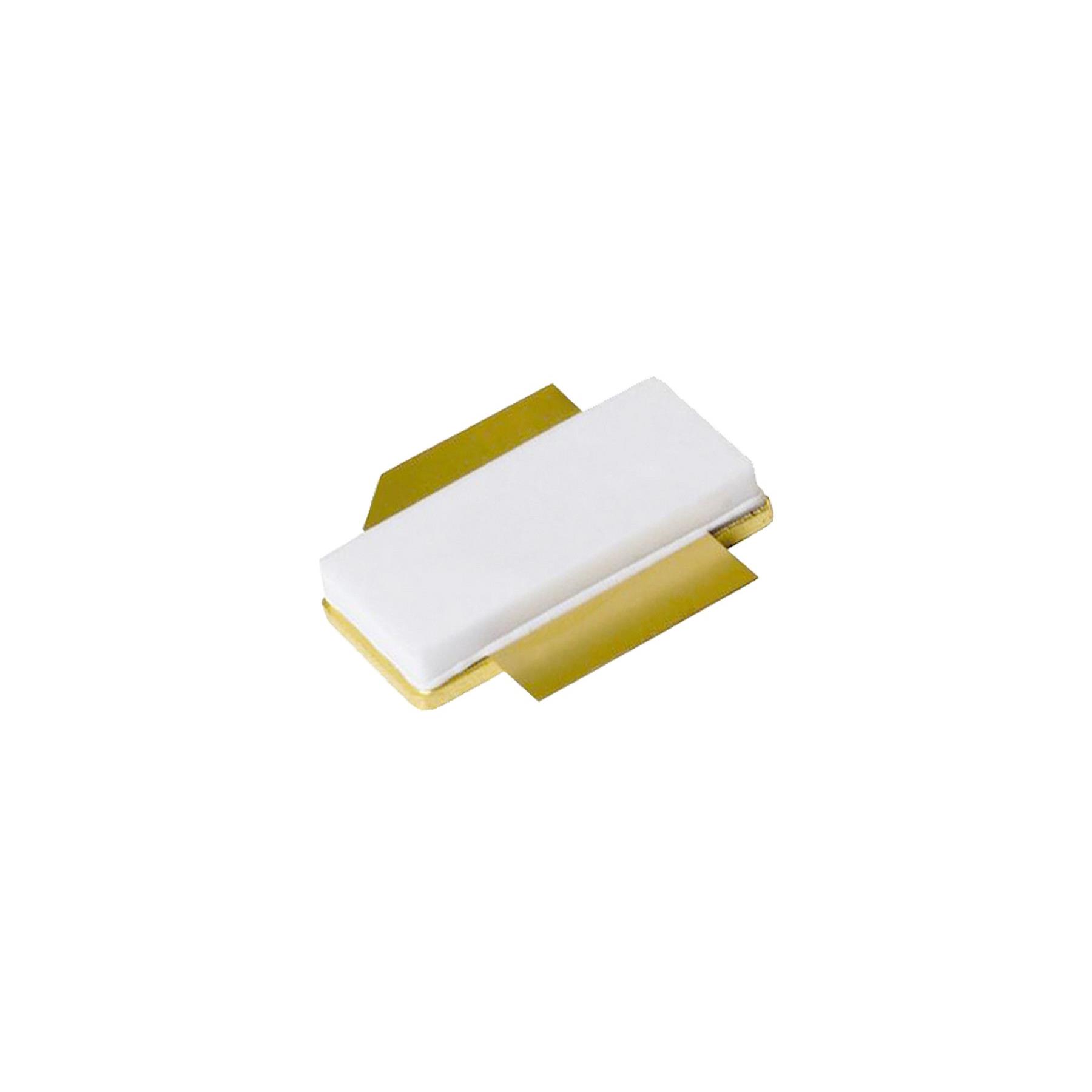

BLA1011S-200R,112

Overview

The BLA1011S-200R,112 is a Silicon Lateral Diffused Metal Oxide Semiconductor (LDMOS) transistor manufactured by Ampleon USA Inc. Designed for avionics applications, this device operates in the 1030 to 1090 MHz frequency range. It features an N-channel enhancement mode configuration with a maximum power dissipation of 25 W and a maximum drain current of 2.2 A. The component supports a maximum operating temperature of 200 °C and utilizes a source-on-mounting-base topology to minimize common-mode inductance.

Feature Summary

High power gain capability
Easy power control characteristics
Excellent ruggedness
Source on mounting base eliminates DC isolators

Applications

Avionics transmitter applications in the 1030 to 1090 MHz frequency range

Procurement Notes

Verify the manufacturer designation as Ampleon USA Inc. or Philips Semiconductors/NXP Semiconductors based on the specific production era. Confirm the RoHS compliance status and package details against the official datasheet M3D381. Ensure the ordering suffix matches the required tape-and-reel packaging specifications.

Selection Notes

Select this component for avionics systems requiring operation within the 1030 to 1090 MHz band. Consider the 25 W power dissipation limit and 200 °C maximum junction temperature when designing thermal management solutions. Evaluate the single-ended configuration and N-channel enhancement mode requirements against the system architecture.

Part Context

This part belongs to the BLA1011 series of avionics LDMOS transistors. It supersedes earlier data sheets from October 2002, with the product specification dated November 19, 2003. The series is characterized by high power gain and ruggedness suitable for demanding aviation environments.

Replacement Considerations

Consult official substitution guides for equivalent LDMOS devices from Ampleon or NXP. Verify pinout compatibility and electrical parameters such as power gain and frequency response before implementing any alternative components.
