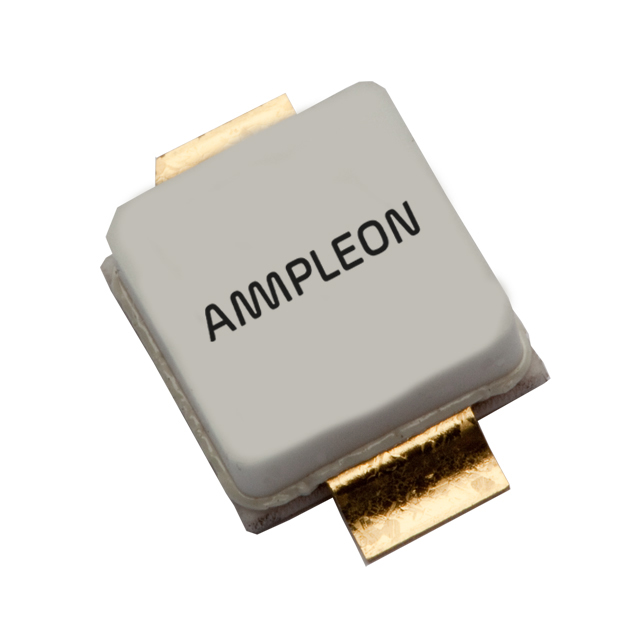

BLF25M612G,112

Description：RF MOSFET LDMOS 28V CDFM2
Series：-

SKU:762ae53662a2 Category: RF FETs, MOSFETs Brand: Ampleon USA Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF MOSFET LDMOS 28V CDFM2
Series：-
Mfr：Ampleon USA Inc.
Package：Tray
Technology：LDMOS
Frequency：2.45GHz
Gain：19dB
Voltage - Test：28 V
Current Rating (Amps)：-
Noise Figure：-
Current - Test：10 mA
Power - Output：12W
Voltage - Rated：65 V
Grade：-
Qualification：-
Mounting Type：Surface Mount
Package / Case：SOT-975C
Supplier Device Package：CDFM2
Configuration：-

Download product information

BLF25M612G,112

Overview

The BLF25M612G,112 is a 12 W LDMOS power transistor designed for Industrial, Scientific and Medical (ISM) applications operating between 2400 MHz and 2500 MHz. It is assembled in an earless flanged ceramic package (SOT975C). At 28 V drain-source voltage and 10 mA quiescent current, it delivers 12 W output power with 19 dB gain and 60% drain efficiency at 2450 MHz. The device withstands a VSWR of 10:1 through all phases and features integrated ESD protection.

Feature Summary

High efficiency and high power gain
Excellent ruggedness against load mismatch
Integrated electrostatic discharge protection

Applications

Industrial, scientific and medical applications in the frequency range 2400 MHz to 2500 MHz

Procurement Notes

Verify the specific ordering suffix matches the required package variant. Confirm RoHS compliance status as per the latest manufacturer documentation. Ensure handling procedures adhere to electrostatic discharge standards during installation.

Selection Notes

Select based on the required output power and frequency band within the ISM spectrum. Consider thermal management requirements given the junction-to-case thermal resistance. Verify compatibility with the intended class-AB operation conditions.

Part Context

This component belongs to Ampleon's portfolio of RF power transistors utilizing LDMOS technology. It serves as a driver stage for high-power continuous wave applications in the specified microwave frequency range.

Replacement Considerations

The BLF25M612 is the non-RoHS compliant equivalent using the SOT975B package. Verify pinout and mechanical dimensions when substituting between the G and non-G variants.
