BLF521

Overview

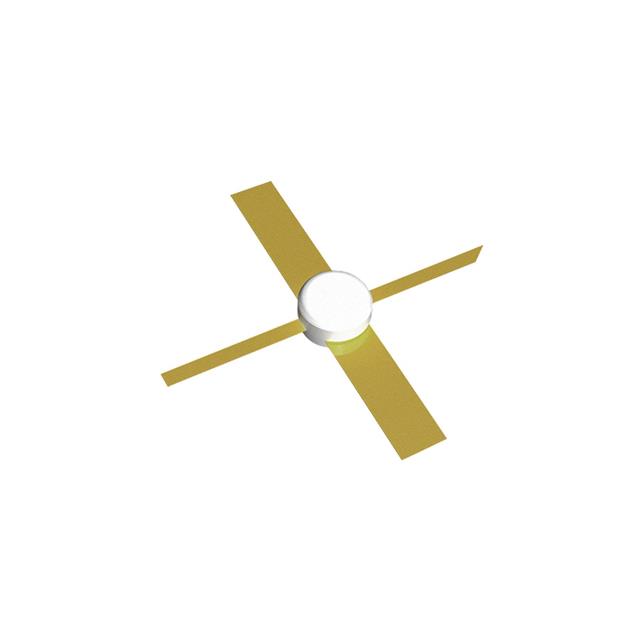

The BLF521 is an LDMOS RF power transistor manufactured by Ampleon USA Inc. It is designed for broadband applications in the VHF and UHF frequency ranges, typically operating between 30 MHz and 300 MHz. The device features a rugged construction suitable for high-power amplifier stages. Key electrical parameters include a drain-source voltage rating of 65 V and a continuous drain current capability of up to 4.5 A. It delivers significant output power with high gain efficiency, making it suitable for demanding RF environments.

Feature Summary

• Broadband operation capability across VHF and UHF bands
• Rugged LDMOS technology for reliable high-power performance
• High gain efficiency for effective signal amplification

Applications

• VHF/UHF broadband power amplifiers
• Commercial broadcast transmitter systems
• Industrial RF heating and plasma generation

Procurement Notes

Verify the specific suffix code on the component marking against the official Ampleon datasheet to ensure correct binning and electrical characteristics. Confirm package type compatibility with the intended heatsink or PCB layout. Check for RoHS compliance status if required by local regulations. Ensure the supplier provides valid traceability documentation for critical infrastructure applications.

Selection Notes

Select the BLF521 when broadband coverage from 30 MHz to 300 MHz is required without retuning. Evaluate thermal management requirements based on the specified maximum junction temperature. Compare output power density against alternative devices if size constraints are critical. Ensure biasing circuits support the 65 V drain voltage and 4.5 A current limits safely.

Part Context

The BLF521 belongs to Ampleon's portfolio of LDMOS transistors optimized for high-efficiency RF power amplification. It complements other devices in the series by offering broad bandwidth stability. The component is engineered for robustness in continuous wave and pulsed modes, serving as a core active element in linear amplifier designs.

Replacement Considerations

Direct replacements must match the SOT-467C package and pinout. Verify that substitute parts meet the 65 V drain voltage and 4.5 A current specifications. Check for equivalent gain and output power at target frequencies to maintain system performance.
