BLF6G15L-250PBRN:1

Overview

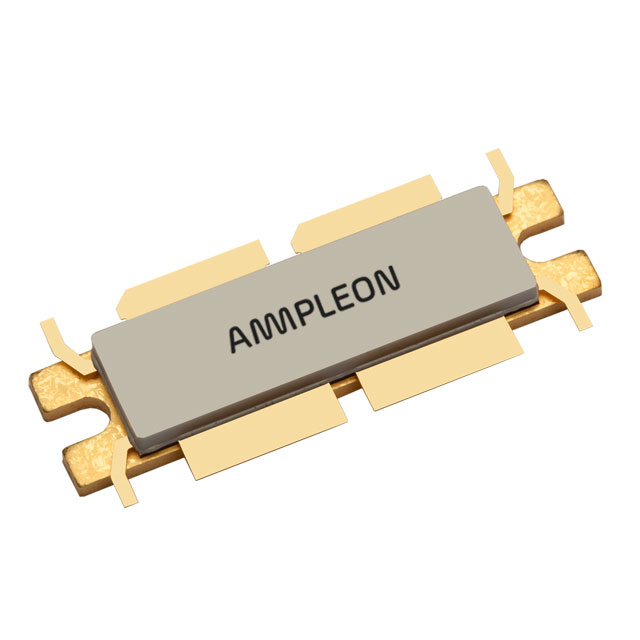

The BLF6G15L-250PBRN is a 250 W LDMOS power transistor designed for base station applications in the 1450 MHz to 1550 MHz frequency range. It features an internally matched design and integrated ESD protection within a flanged ceramic package (SOT1110A). Typical performance at 28 V supply voltage and 1410 mA quiescent current includes 60 W average output power, 18.5 dB power gain, 33.0% drain efficiency, and -32 dBc ACPR under 2C-WCDMA conditions. The device supports broadband operation with enhanced ruggedness against load mismatches up to 10:1 VSWR.

Feature Summary

• Internally matched for ease of use
• Integrated ESD protection
• Enhanced ruggedness
• High efficiency
• Excellent thermal stability
• Designed for broadband operation
• Compliant to RoHS Directive
• Integrated current sense

Applications

• RF power amplifiers for GSM
• RF power amplifiers for GSM EDGE
• RF power amplifiers for CDMA
• RF power amplifiers for W-CDMA
• Multi carrier applications in the 1450 MHz to 1550 MHz frequency range
