BLF8G10LS-270GVJ

Overview

The BLF8G10LS-270GVJ is a 270 W LDMOS power transistor designed for base station applications in the 790 MHz to 960 MHz frequency range. It features improved video bandwidth and low memory effects, making it suitable for multi-carrier systems like W-CDMA. The device operates at a drain-source voltage of 28 V with a typical gain of 19.5 dB and drain efficiency of 31% at an average output power of 67 W. It utilizes an earless flanged ceramic package (SOT1244C) with decoupling leads to enhance thermal stability and ruggedness.

Feature Summary

• Enhanced video bandwidth capability through integrated decoupling leads
• Low memory effects optimized for digital pre-distortion
• High ruggedness supporting significant load mismatches
• Internally matched design for simplified circuit integration

Applications

• RF power amplifiers for W-CDMA base stations
• Multi-carrier applications in the 790 MHz to 960 MHz band
• Doherty amplifier configurations requiring low output capacitance

Procurement Notes

Verify the specific ordering suffix against the manufacturer's current documentation to confirm lead frame configuration. Confirm that the component meets RoHS compliance requirements relevant to the target deployment region. Ensure proper electrostatic discharge handling protocols are followed during storage and assembly due to the sensitivity of the semiconductor junction.

Selection Notes

Select this component when designing broadband RF power stages operating between 790 MHz and 960 MHz. The internal matching network simplifies impedance transformation requirements. Evaluate the thermal resistance characteristics to ensure adequate heat sinking for the specified power levels. Consider the device's video bandwidth capabilities if deploying complex modulation schemes requiring high linearity.

Part Context

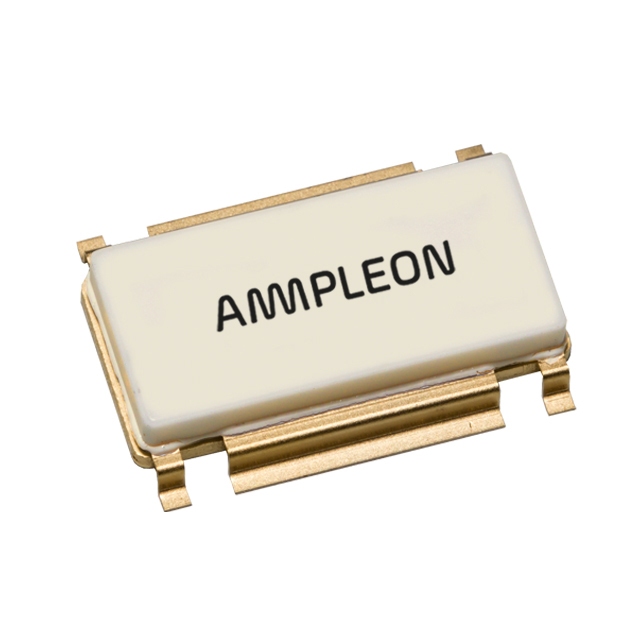

This part belongs to the BLF8 series of LDMOS transistors manufactured by Ampleon USA Inc. The 'G' suffix indicates a gull-wing lead configuration within the SOT1244C package outline. It serves as a specialized variant within the broader portfolio of RF power devices intended for telecommunications infrastructure.

Replacement Considerations

Consult official substitution lists for compatible alternatives such as the BLF8G10LS-270V or other members of the BLF8 family. Verify pinout compatibility and thermal interface dimensions before implementing any cross-model replacements in existing designs.
