BSZ215CHXTMA1

Overview

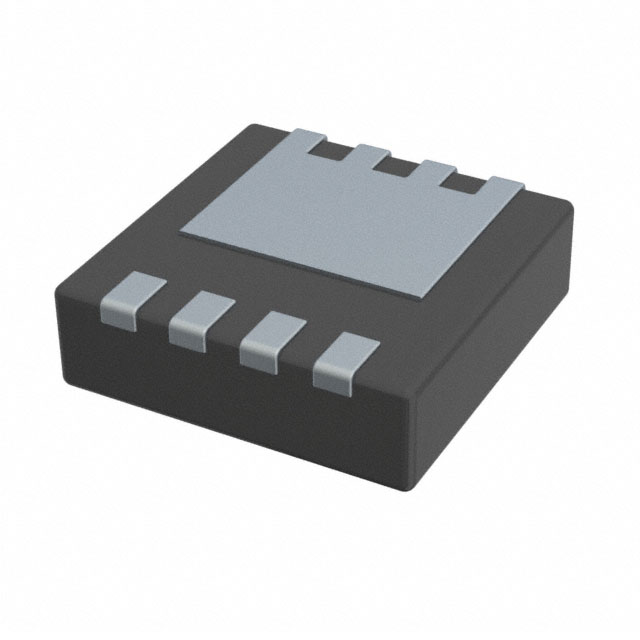

The BSZ215CHXTMA1 is a complementary small signal transistor featuring one P-channel and one N-channel enhancement mode MOSFET in a PG-TSDSON-8 package. It operates with a drain-source voltage of ±20 V and supports continuous currents of -3.2 A for the P-channel and 5.1 A for the N-channel. The device includes avalanche rating, common drain configuration, and Super Logic level capability rated at 2.5 V.

Feature Summary

• Complementary P-channel and N-channel enhancement mode transistors integrated into a single component
• Avalanche rated to withstand single pulse energy without failure
• Qualified according to AEC-Q101 standards for automotive reliability
• Super Logic level operation optimized for low gate drive voltages

Applications

• Automotive electronic systems requiring qualified small signal switching
• Industrial applications utilizing low voltage logic level control
• Consumer electronics circuits needing compact complementary power stages

Procurement Notes

Verify the specific ordering suffix XTMA1 against official Infineon documentation to confirm the exact tape and reel packaging configuration. Ensure compliance with RoHS and halogen-free requirements as stated in the datasheet specifications before finalizing procurement orders.

Selection Notes

Select this component when a dual complementary switch is required within a minimal footprint. The 2.5 V logic level rating makes it suitable for direct interfacing with standard logic outputs. Verify that the thermal resistance and power dissipation limits align with the intended ambient temperature conditions.

Part Context

This part belongs to the OptiMOS™2 and OptiMOS™-P 2 small signal transistor portfolio from Infineon Technologies. It represents a specialized solution for applications demanding high reliability and space efficiency in low voltage environments.

Replacement Considerations

Consult official replacement guides for verified substitutes. Generic cross-references may not match the specific avalanche ratings or AEC-Q101 qualification status required for automotive deployments.

FAQ

Is the BSZ215CHXTMA1 capable of handling avalanche energy?

Yes, the datasheet explicitly states that both the P-channel and N-channel transistors are avalanche rated.

What is the maximum operating junction temperature?

The maximum operating and storage temperature range extends up to +175 °C.

Does this component meet automotive quality standards?

Yes, the device is qualified according to the AEC-Q101 standard.
