BUK9D23-40EX

$0.47

Description：MOSFET N-CH 40V 8A DFN2020MD-6
Series：-
Mfr：Nexperia USA Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:4e1e5c126fb2 Category: Single FETs, MOSFETs Brand: Nexperia USA Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MOSFET N-CH 40V 8A DFN2020MD-6
Series：-
Mfr：Nexperia USA Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
FET Type：N-Channel
Technology：MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)：40 V
Current - Continuous Drain (Id) @ 25°C：8A (Ta)
Drive Voltage (Max Rds On, Min Rds On)：4.5V, 10V
Rds On (Max) @ Id, Vgs：23mOhm @ 8A, 10V
Vgs(th) (Max) @ Id：2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs：17 nC @ 10 V
Vgs (Max)：±15V
Input Capacitance (Ciss) (Max) @ Vds：637 pF @ 20 V
FET Feature：-
Power Dissipation (Max)：15W (Tc)
Operating Temperature：-55°C ~ 175°C (TJ)
Grade：Automotive
Qualification：AEC-Q101
Mounting Type：Surface Mount
Supplier Device Package：DFN2020MD-6
Package / Case：6-UDFN Exposed Pad

Download product information

BUK9D23-40EX

Overview

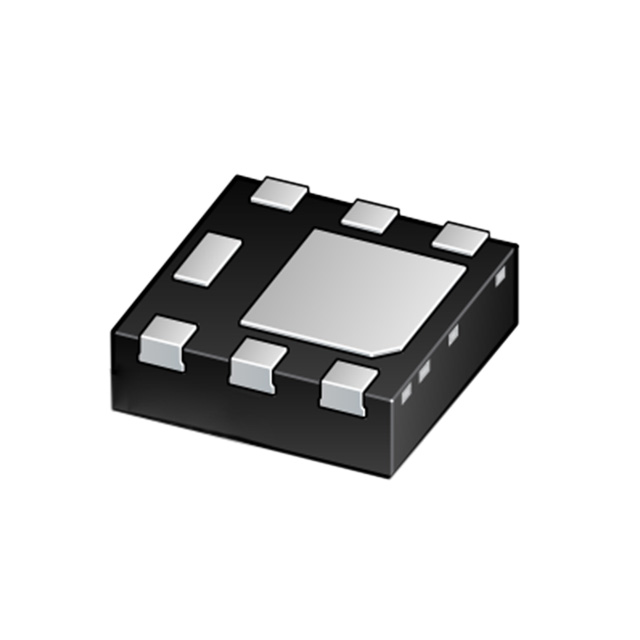

The Nexperia BUK9D23-40EX is an N-channel enhancement mode Field-Effect Transistor utilizing Trench MOSFET technology. It operates with a drain-source voltage of 40 V and supports a continuous drain current of 19 A at a solder point temperature of 25 °C. The device features a maximum drain-source on-state resistance of 23 mΩ at 25 °C and a total power dissipation capacity of 15 W under the same conditions. Packaged in a DFN2020MD-6 (SOT1220) surface-mount format measuring 2 x 2 x 0.65 mm, it includes side wettable flanks for optical inspection and is qualified to the AEC-Q101 standard.

Feature Summary

AEC-Q101 qualified for automotive applications
Side wettable flanks enable optical solder inspection
Ultra-thin leadless SMD plastic package design

Applications

Relay driver circuits
High-speed line drivers
Low-side load switches
General switching circuits

Procurement Notes

Verify the specific ordering suffix against official Nexperia documentation to confirm packaging details such as reel dimensions or tape specifications. Confirm that the component meets all required environmental standards for your specific deployment environment before finalizing procurement decisions.

Selection Notes

Select this component when a compact footprint is required alongside high thermal performance. The low on-state resistance minimizes conduction losses, while the extended junction temperature rating up to 175 °C ensures reliability in thermally demanding environments compared to standard commercial grade alternatives.

Part Context

This device belongs to Nexperia's portfolio of medium power N-channel Trench MOSFETs designed for surface-mounted applications. The DFN2020MD-6 package provides enhanced thermal dissipation capabilities relative to its physical size, making it suitable for space-constrained designs requiring robust switching performance.
