Product Detailed Parameters
- Description：IGBT MOD 1200V 450A 1000W
- Series：-
- Mfr：Infineon Technologies
- Package：Bulk,Tray
- IGBT Type：-
- Configuration：Single
- Vce(on) (Max) @ Vge, Ic：-
- Input：Standard
- NTC Thermistor：No
- Operating Temperature：150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：450 A
- Power - Max：1000 W
- Current - Collector Cutoff (Max)：-
- Input Capacitance (Cies) @ Vce：-
Download product information
Overview

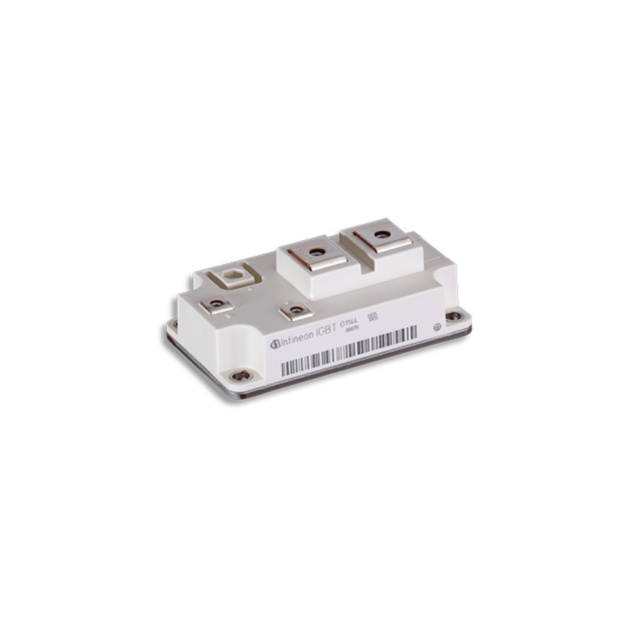

The BYM300A120DN2HOSA1 is a single IGBT module manufactured by Infineon Technologies. It features a collector-emitter breakdown voltage of 1200 V and a maximum continuous collector current of 450 A. The device has a maximum power dissipation rating of 1000 W and is designed for base mounting in a module package. It utilizes standard input configuration without an integrated NTC thermistor. The component operates at a maximum junction temperature of 150°C and complies with RoHS3 standards.
Feature Summary
- Single-channel IGBT configuration for high-power switching applications
- Robust thermal performance with 1000 W power dissipation capability
- Standard interface design compatible with conventional gate drive circuits
Applications
- Industrial motor drives
- Power supply systems
- Inverter circuits
Procurement Notes
Verify the exact part number against official Infineon documentation to ensure compatibility, as this specific variant may be discontinued or superseded. Confirm that the 1200V and 450A ratings align with your system requirements before procurement. Check for any updated replacement modules if this item is no longer actively stocked by distributors.
Selection Notes
Select this module when a 1200V rated single IGBT with 450A current capacity is required. Ensure the cooling solution supports the 1000W dissipation limit at the specified 150°C junction temperature. Verify that the base-mount package fits the mechanical constraints of the target application board or chassis.
Part Context
This component belongs to the BYM300 series of IGBT modules from Infineon Technologies. It is designed for general industrial power electronics applications requiring reliable high-current switching. The HOSA1 suffix typically denotes specific packaging or tape-and-reel variations compared to standard tray packaging.
Replacement Considerations
Check for direct replacements within the BSM or FZ series if availability is an issue. Ensure any substitute maintains the 1200V/450A rating and similar thermal resistance characteristics.
