CAB525F12XM3

Overview

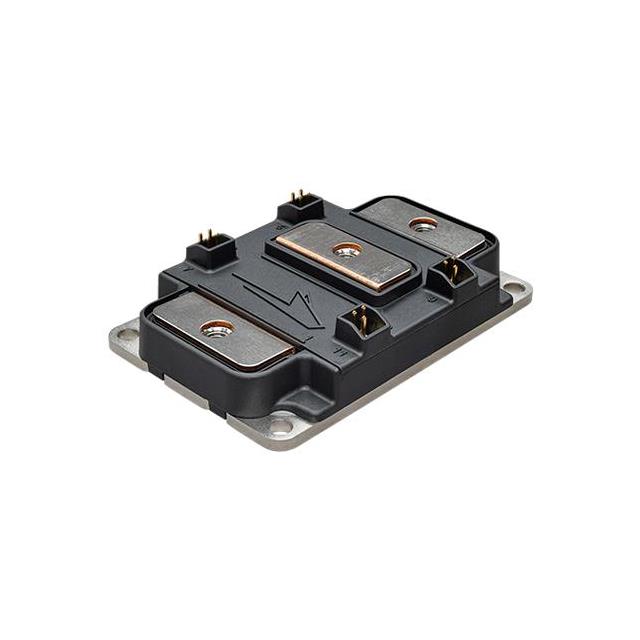

The Wolfspeed CAB525F12XM3 is a 1200 V, half-bridge Silicon Carbide (SiC) power module utilizing third-generation MOSFET technology. It features an implementable current of 525 A RMS and a DC continuous drain current of 450 A at 25 °C case temperature. The typical on-state resistance is 2.6 mΩ, with a maximum gate-source voltage of +19 V transient and -4/+15 V operational limits. Operating within a virtual junction temperature range of -40 °C to 175 °C, the module incorporates a silicon nitride insulator, copper baseplate, and integrated NTC temperature sensors for thermal monitoring.

Feature Summary

• Low-inductance design achieving 6.7 nH stray inductance between terminals
• Advanced direct cooling baseplate with silicon nitride insulator
• Integrated isolated temperature sensing via dual NTC thermistors
• Dedicated high-side Kelvin-drain pin for precise gate driver overcurrent protection

Applications

• Motor and motion control systems
• Vehicle fast chargers
• Uninterruptible power supplies (UPS)
• Smart-grid and grid-tied distributed generation
• Traction drives and e-mobility applications

Procurement Notes

Verify component authenticity by cross-referencing the manufacturer part number against official Wolfspeed documentation. Confirm that the received hardware matches the XM3 series specifications, including the specific terminal layout and mounting torque requirements. Ensure all technical parameters align with the published datasheet before integration into final designs.

Selection Notes

Select this module for high-power density applications requiring low switching losses and robust thermal management. Evaluate the system's liquid cooling flow rate, as the continuous current capability and thermal resistance are dependent on maintaining 4 LPM. Consider the 6.7 nH internal stray inductance when designing busbar connections to minimize voltage overshoot during switching events.

Part Context

This component belongs to the Wolfspeed XM3 family of discrete semiconductor modules. It represents a progression in SiC power packaging, offering higher current density compared to previous generations through optimized die placement and advanced cooling structures. The XM3 designation indicates compatibility with specific evaluation kits and gate drivers designed for this form factor.

Replacement Considerations

Direct replacements must match the 1200 V rating, half-bridge configuration, and physical footprint. Verify that substitute modules support similar current ratings and thermal characteristics. Ensure any alternative components are compatible with the dedicated Kelvin-drain pin requirement for accurate overcurrent protection in the target application circuit.

FAQ

What is the recommended operating gate voltage for the CAB525F12XM3?

The recommended turn-on gate voltage is 15 V with a ±5% regulation tolerance. The operational gate-source voltage range is specified as -4 V to +15 V.

How does the module handle thermal monitoring?

The module includes two integrated NTC thermistors (NTC1 and NTC2) for isolated, high-level temperature protection. The typical resistance at 25 °C is 4700 Ω with a Beta value of 3435 K from 25 °C to 85 °C.

What is the maximum transient gate-source voltage allowed?

The maximum transient gate-source voltage (VGS max) is +19 V. Exceeding this limit may damage the gate oxide layer.
