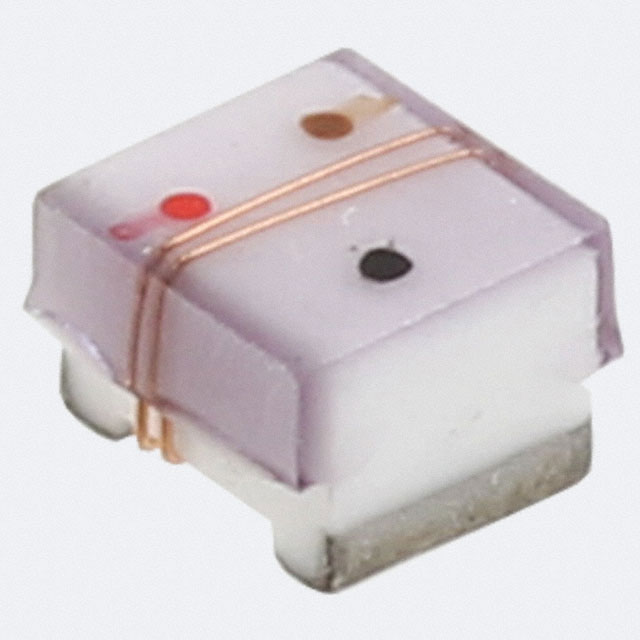

Antennas RF CAF93512 product image

CAF93512

Description：RF ANT 2.4GHZ CHIP SOLDER SMD
Series：-
Mfr：TE Connectivity
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:73240efee603 Category: RF Antennas Brand: TE Connectivity

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CAF93512 is listed in the Antennas RF range at ChipApex. The manufacturer field lists TE Connectivity. Its product description is RF ANT 2.4GHZ CHIP SOLDER SMD. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for CAF93512

Description：RF ANT 2.4GHZ CHIP SOLDER SMD
Series：-
Mfr：TE Connectivity
Package：Tape & Reel (TR),Cut Tape (CT)
RF Family/Standard：Bluetooth, WiFi
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.4GHz
Frequency Range：2.4GHz ~ 2.5GHz
Antenna Type：Chip
Number of Bands：1
VSWR：3
Return Loss：-
Gain：-
Features：-
Termination：Solder
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.079" (2.00mm)
Applications：Bluetooth, Wi-Fi
Power - Max：-

Antennas RF datasheet and documents for CAF93512

CAF93512
