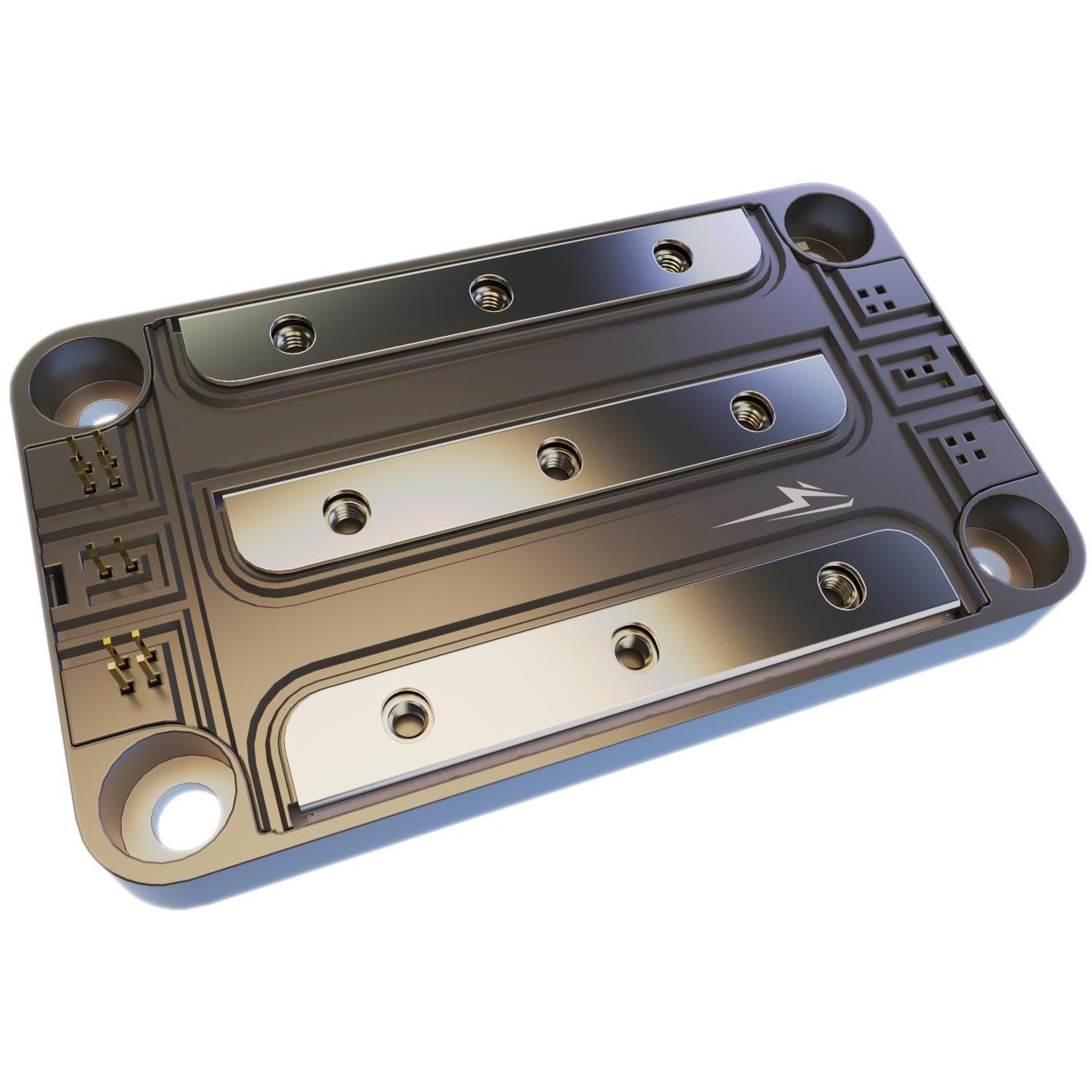

CAS380M17HM3

$3,525.38

Description：MOSFET 2N-CH 1700V 532A MODULE
Series：-

SKU:11eab08e7761 Category: FET, MOSFET Arrays Brand: Wolfspeed, Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MOSFET 2N-CH 1700V 532A MODULE
Series：-
Mfr：Wolfspeed, Inc.
Package：Bulk
Technology：Silicon Carbide (SiC)
Configuration：2 N-Channel (Dual)
FET Feature：-
Drain to Source Voltage (Vdss)：1700V (1.7kV)
Current - Continuous Drain (Id) @ 25°C：532A (Tc)
Rds On (Max) @ Id, Vgs：3.74mOhm @ 380A, 15V
Vgs(th) (Max) @ Id：3.6V @ 152mA
Gate Charge (Qg) (Max) @ Vgs：1494nC @ 15V
Input Capacitance (Ciss) (Max) @ Vds：4700pF @ 1200V
Power - Max：-
Operating Temperature：-40°C ~ 175°C (TJ)
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：Module
Grade：-
Qualification：-

Download product information

CAS380M17HM3

Overview

The CAS380M17HM3 is a 1700 V, 380 A Silicon Carbide half-bridge power module from Wolfspeed. It utilizes third-generation SiC MOSFET technology with a low inductance 62 mm footprint and an AlSiC baseplate. Key electrical parameters include a drain-source voltage of 1700 V, typical on-state resistance of 3.74 mΩ at 175 °C, and a maximum junction temperature of 175 °C. The module integrates NTC thermal sensors and offers high reliability through silicon nitride insulation.

Feature Summary

Implements switching optimized third generation SiC MOSFET technology for low conduction and switching losses.
Features a lightweight AlSiC baseplate and high reliability silicon nitride insulator for robust thermal management.
Provides zero reverse recovery characteristics from integrated diodes to minimize switching energy loss.

Applications

Railway & Traction
Solar Inverters
EV Chargers
Industrial Automation & Testing

Procurement Notes

Verify the specific ordering suffix when purchasing. The CAS380M17HM3 designation indicates the module without pre-applied phase change thermal interface material. The CAS380M17HM3T variant includes this material. Confirm that the component bears the UL marking for recognition under UL 1557 if required for system certification.

Selection Notes

Select based on the 1700 V rating and 380 A current capacity suitable for high-power density systems. Ensure the design accommodates the 62 mm compatible baseplate form factor for potential retrofitting. Consider the 175 °C maximum junction temperature capability for thermal optimization in demanding environments.

Part Context

This component belongs to the HM3 (High Performance Module) platform designed by Wolfspeed. It is part of a family including variants like CAB760M12HM3 and CAS480M17HM3, sharing the same 62 mm footprint to facilitate standardized mechanical integration across different power levels within the same product ecosystem.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Designers should consult Wolfspeed technical support or use the SpeedFit 2.0 Design Simulator to identify equivalent components meeting specific voltage, current, and thermal requirements.

FAQ

What is the difference between CAS380M17HM3 and CAS380M17HM3T?

The CAS380M17HM3 does not include pre-applied phase change thermal interface material, whereas the CAS380M17HM3T comes with this material applied.

Does the CAS380M17HM3 have reverse recovery charge?

No, the module implements SiC Schottky Diodes which provide zero reverse recovery characteristics, although they contribute capacitive energy during switching.
