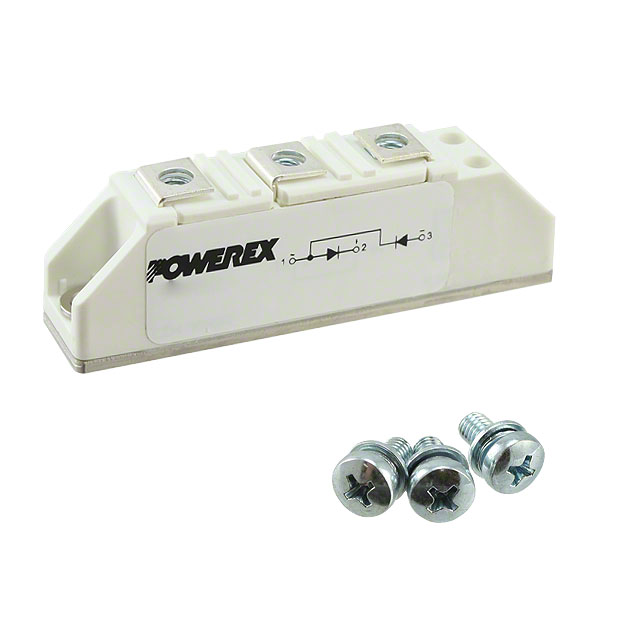

CD411299B

$26.21

Description：DIODE MOD GP 1200V 100A POWRBLOK
Series：-

SKU:5f6cb12de118 Category: Diode Arrays Brand: Powerex Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CD411299B is listed in the Diode Arrays range at ChipApex. The manufacturer field lists Powerex Inc.. Its product description is DIODE MOD GP 1200V 100A POWRBLOK. Review the specifications below when checking this part for your BOM.

Diode Arrays specifications for CD411299B

Description：DIODE MOD GP 1200V 100A POWRBLOK
Series：-
Mfr：Powerex Inc.
Package：Bulk
Diode Configuration：1 Pair Series Connection
Technology：Standard
Voltage - DC Reverse (Vr) (Max)：1200 V
Current - Average Rectified (Io) (per Diode)：100A
Voltage - Forward (Vf) (Max) @ If：-
Speed：Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)：-
Current - Reverse Leakage @ Vr：10 mA @ 1200 V
Operating Temperature - Junction：-40°C ~ 150°C
Mounting Type：Chassis Mount
Package / Case：POW-R-BLOK™ Module
Supplier Device Package：POW-R-BLOK™ Module
Grade：-
Qualification：-

Diode Arrays datasheet and documents for CD411299B

CD411299B

Diode Arrays Overview

The CD411299B is a single-phase silicon rectifier diode manufactured by Powerex Inc. It utilizes the POW-R-BLOK-3 package configuration, designed for high-power industrial applications. The component features a repetitive peak reverse voltage rating of 1200V and supports a continuous forward current of 100A. As a robust power semiconductor device, it provides reliable unidirectional current conduction with high thermal stability.

Diode Arrays Feature Summary

High-voltage blocking capability suitable for demanding power conversion environments
Robust mechanical construction within the POW-R-BLOK-3 module format
Designed for efficient heat dissipation in high-current industrial circuits

Diode Arrays Applications

Industrial motor drive systems
High-power DC power supplies
Inverter bridge rectification stages

Diode Arrays Procurement Notes

Verify the specific datasheet revision to ensure compatibility with your thermal management design. Confirm that the POW-R-BLOK-3 mounting interface matches your heatsink specifications. Cross-reference the 1200V and 100A ratings against your circuit's peak transient requirements to ensure adequate safety margins during operation.

Diode Arrays Selection Notes

Select this component when a rugged, high-current single-phase rectifier is required. The 1200V rating accommodates standard three-phase line voltages with sufficient headroom. Ensure the application environment allows for the thermal performance characteristics inherent to the POW-R-BLOK-3 packaging style.

Diode Arrays Part Context

This part belongs to Powerex's POW-R-BLOK series, a family of high-performance power modules known for reliability in heavy-duty electronics. The 'CD' prefix typically denotes specific terminal or variant configurations within this broader product line, distinguishing it from other rectifier families offered by the manufacturer.
