CDH74NP-470KC

$0.50

Description：FIXED IND 47UH 1.2A 230 MOHM SMD
Series：CDH74
Mfr：Sumida America Components Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:afa9c3791e54 Category: Fixed Inductors Brand: Sumida America Components Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CDH74NP-470KC is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Sumida America Components Inc.. Its product description is FIXED IND 47UH 1.2A 230 MOHM SMD. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for CDH74NP-470KC

Description：FIXED IND 47UH 1.2A 230 MOHM SMD
Series：CDH74
Mfr：Sumida America Components Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Drum Core, Wirewound
Material - Core：Ferrite
Inductance：47 µH
Tolerance：±10%
Current Rating (Amps)：1.2 A
Current - Saturation (Isat)：-
Shielding：Unshielded
DC Resistance (DCR)：230mOhm Max
Q @ Freq：-
Frequency - Self Resonant：-
Ratings：-
Operating Temperature：-40°C ~ 100°C
Inductance Frequency - Test：1 kHz
Mounting Type：Surface Mount
Package / Case：Nonstandard
Supplier Device Package：-
Size / Dimension：0.315" L x 0.287" W (8.00mm x 7.30mm)
Height - Seated (Max)：0.205" (5.20mm)
Features：-

Fixed Inductors datasheet and documents for CDH74NP-470KC

CDH74NP-470KC

Fixed Inductors Overview

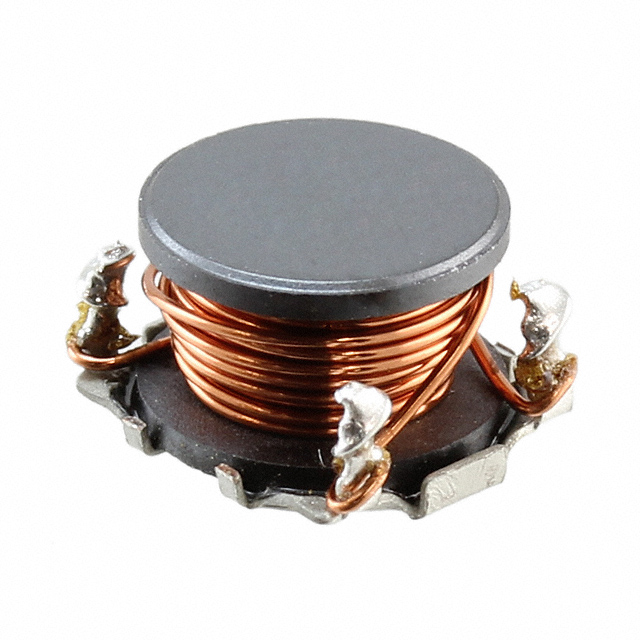

The CDH74NP-470KC is a fixed surface-mount power inductor manufactured by Sumida America Components Inc. It features an unshielded drum core wirewound construction with a ferrite magnetic core. The component provides a nominal inductance of 47 µH with a tolerance of ±10%. It supports a maximum DC current of 1.2 A and has a maximum DC resistance (DCR) of 230 mΩ. The device operates within a temperature range of -40°C to 100°C and is tested at a frequency of 1 kHz.

Fixed Inductors Feature Summary

Unshielded drum core wirewound design for general-purpose applications
Ferrite core material providing stable inductance characteristics
Surface mount package suitable for automated assembly processes

Fixed Inductors Applications

General purpose power supply filtering
DC-DC converter input or output stages
Signal processing circuits requiring moderate inductance

Fixed Inductors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to ensure correct tolerance and packaging configuration. Confirm that the unshielded design aligns with your electromagnetic interference requirements, as this variant lacks magnetic shielding compared to shielded counterparts in the same series.

Fixed Inductors Selection Notes

Select this component when an unshielded inductor is acceptable to reduce cost or size constraints are minimal. Ensure the required 1.2 A current rating meets the circuit's peak load demands. Consider the 230 mΩ DCR impact on efficiency if low-loss performance is critical for the application.

Fixed Inductors Part Context

This part belongs to the CDH74 series of power inductors from Sumida. It is distinct from shielded variants like the CDRH74 series due to its open drum core structure. The series offers various inductance values tailored for different power management needs while maintaining standard surface-mount footprints.
