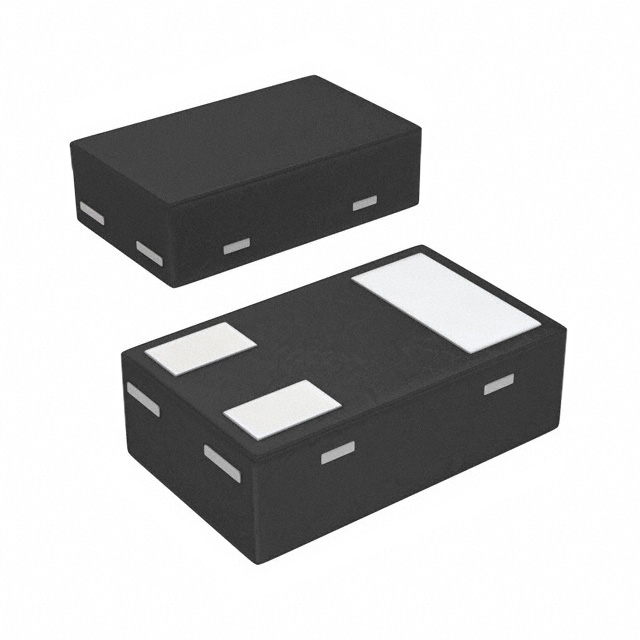

CEDM8001VL TR PBFREE

$0.32

Description：MOSFET P-CH 20V 100MA SOT883VL
Series：-
Mfr：Central Semiconductor Corp
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:10f14ed75587 Category: Single FETs, MOSFETs Brand: Central Semiconductor Corp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MOSFET P-CH 20V 100MA SOT883VL
Series：-
Mfr：Central Semiconductor Corp
Package：Tape & Reel (TR),Cut Tape (CT)
FET Type：P-Channel
Technology：MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)：20 V
Current - Continuous Drain (Id) @ 25°C：100mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)：1.5V, 4V
Rds On (Max) @ Id, Vgs：8Ohm @ 10mA, 4V
Vgs(th) (Max) @ Id：1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs：0.66 nC @ 4.5 V
Vgs (Max)：10V
Input Capacitance (Ciss) (Max) @ Vds：45 pF @ 3 V
FET Feature：-
Power Dissipation (Max)：100mW (Ta)
Operating Temperature：-65°C ~ 150°C (TJ)
Grade：-
Qualification：-
Mounting Type：Surface Mount
Supplier Device Package：SOT-883VL
Package / Case：SC-101, SOT-883

Download product information

CEDM8001VL TR PBFREE

Overview

The CEDM8001VL TR PBFREE is a surface-mount silicon P-channel enhancement-mode MOSFET housed in the SOT-883VL package. It features a maximum drain-source voltage of 20 V and a gate-source voltage rating of 10 V. The device supports a continuous steady-state drain current of 100 mA, with a peak current capability of 200 mA. Power dissipation is rated at 100 mW at 25°C ambient temperature. Electrical characteristics include a threshold voltage ranging from 0.6 V to 1.1 V and an on-resistance of up to 8.0 Ω at VGS=4.0V. Total gate charge is typically 0.658 nC.

Feature Summary

Designed for space-constrained high-speed amplifier and driver applications requiring minimal package height.
Offers low on-resistance and low gate charge for efficient switching performance.
Features logic level compatibility and a very low profile package construction.

Applications

Load and power switches
DC-DC converters
Battery-powered portable equipment

Procurement Notes

Verify component status carefully as Central Semiconductor has issued a discontinuation notice for all devices manufactured in the SOT-883VL package. This product is classified as End of Life (EOL). Orders are restricted to available inventory only. Confirm availability directly with the manufacturer or authorized distributors before finalizing procurement plans.

Selection Notes

Select this component when a P-channel MOSFET with a 20 V rating and extremely low physical profile is required. Ensure the design accommodates the 100 mW power dissipation limit. Verify that the SOT-883VL footprint matches the PCB layout. Consider the discontinued status during long-term production planning.

Part Context

This part belongs to the CEDM series of surface-mount silicon MOSFETs produced by Central Semiconductor Corp. It serves as the P-channel counterpart to the complementary N-channel device, the CEDM7001VL. Both utilize the specialized SOT-883VL case designed specifically for ultra-low height requirements in compact electronic assemblies.

Replacement Considerations

No replacement part numbers are currently available from Central Semiconductor for this specific model. The manufacturer indicates that no alternate source products have been identified for the discontinued SOT-883VL package family. Contact engineering support for potential alternative sourcing assistance.
