CGHV40200PP-AMP1

Overview

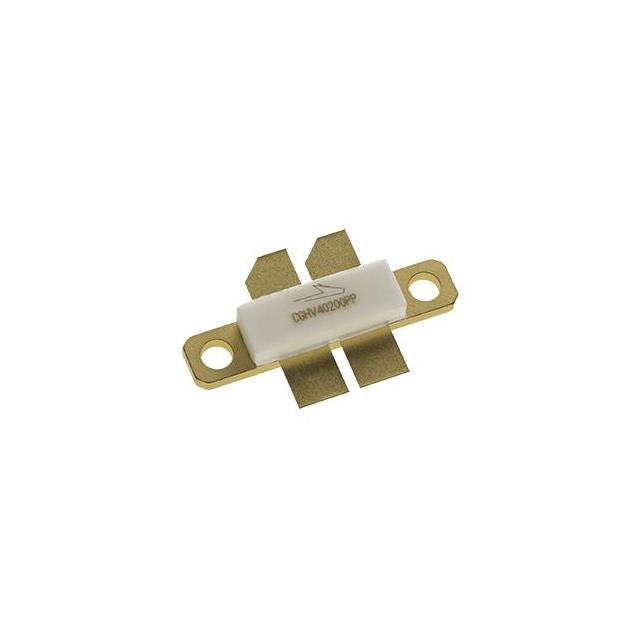

The CGHV40200PP-AMP1 is an RF amplifier evaluation board manufactured by MACOM Technology Solutions. It is designed for the evaluation of the CGHV40200PP Gallium Nitride High Electron Mobility Transistor (GaN HEMT). The board operates within a frequency range of 1.7 to 1.9 GHz, with specific testing capabilities noted up to 1.9 GHz. This development tool facilitates the assessment of the transistor's performance characteristics in a controlled environment.

Feature Summary

• Provides a dedicated platform for evaluating the CGHV40200PP GaN HEMT device
• Supports RF amplifier testing and characterization within specified frequency bands
• Includes the CGHV40200PP component for direct integration into evaluation circuits

Applications

• Evaluation of CGHV40200PP GaN HEMT performance
• RF amplifier design and testing
• Development of high-frequency electronic systems

Procurement Notes

Verify export compliance requirements before ordering, as this product may require additional documentation for international shipment from the United States. Confirm current availability status with authorized distributors, as inventory levels can fluctuate. Ensure that the intended application aligns with the board's specifications for the CGHV40200PP device. Check for any recent Product Change Notifications that might affect the board's configuration or included components prior to purchase.

Selection Notes

Select this evaluation board specifically when the design phase requires validation of the CGHV40200PP GaN HEMT. It is suitable for engineers developing RF amplifiers operating in the 1.7 to 1.9 GHz range. Consider this tool if access to the discrete component is needed alongside a tested carrier board. Evaluate alternative boards only if different frequency ranges or transistor packages are required for the project.

Part Context

This part belongs to MACOM's RF Development Tools category, specifically under Amplifier Evaluation Boards. It is distinct from standalone transistors, serving instead as a complete assembly for testing purposes. The product line focuses on providing reliable platforms for characterizing high-performance GaN devices used in communication infrastructure.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific evaluation board. Alternative solutions would require designing a custom test fixture or selecting a different MACOM evaluation kit compatible with other GaN HEMT variants.
