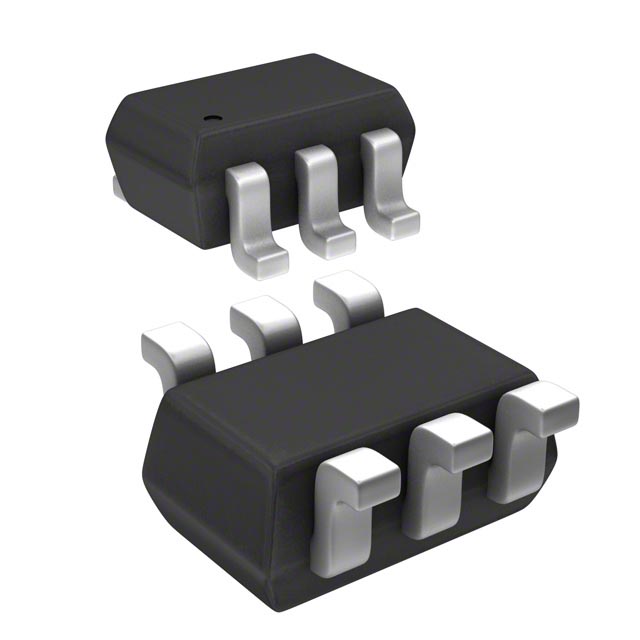

CJ3139KDW-G

$0.41

Description：MOSFET 2P-CH 20V 0.66A SOT363
Series：-

SKU:521319c74091 Category: FET, MOSFET Arrays Brand: Comchip Technology

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MOSFET 2P-CH 20V 0.66A SOT363
Series：-
Mfr：Comchip Technology
Package：Tape & Reel (TR),Cut Tape (CT)
Technology：MOSFET (Metal Oxide)
Configuration：2 P-Channel (Dual)
FET Feature：-
Drain to Source Voltage (Vdss)：20V
Current - Continuous Drain (Id) @ 25°C：660mA (Ta)
Rds On (Max) @ Id, Vgs：520mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id：1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs：-
Input Capacitance (Ciss) (Max) @ Vds：170pF @ 16V
Power - Max：150mW
Operating Temperature：-40°C ~ 150°C (TJ)
Mounting Type：Surface Mount
Package / Case：6-TSSOP, SC-88, SOT-363
Supplier Device Package：SOT-363
Grade：-
Qualification：-

Download product information

CJ3139KDW-G

Overview

The CJ3139KDW-G is a dual P-Channel Power MOSFET manufactured by Comchip Technology. It integrates two independent P-channel MOSFETs within a single SOT-363 plastic-encapsulated package. The device is designed for general-purpose switching applications requiring compact form factors. Official documentation identifies the component as a dual power MOSFET suitable for low-voltage signal and power management circuits.

Feature Summary

Dual configuration integrating two P-channel MOSFETs in one package
Plastic encapsulation for standard surface-mount assembly
Designed for general-purpose switching functions

Applications

Low-voltage power management circuits
General-purpose signal switching
Compact electronic device power stages

Part Context

This component belongs to the CJ3139 series of dual P-Channel MOSFETs. It shares functional similarities with other dual MOSFET packages but is distinct in its specific pinout and electrical characteristics defined by Comchip Technology. The suffix indicates a specific tape-and-reel packaging variant.

Replacement Considerations

Verify pin compatibility and voltage ratings against alternatives like AO3407A or similar dual P-channel MOSFETs. Ensure the replacement supports the SOT-363 footprint and meets the required current handling for the specific circuit design.
