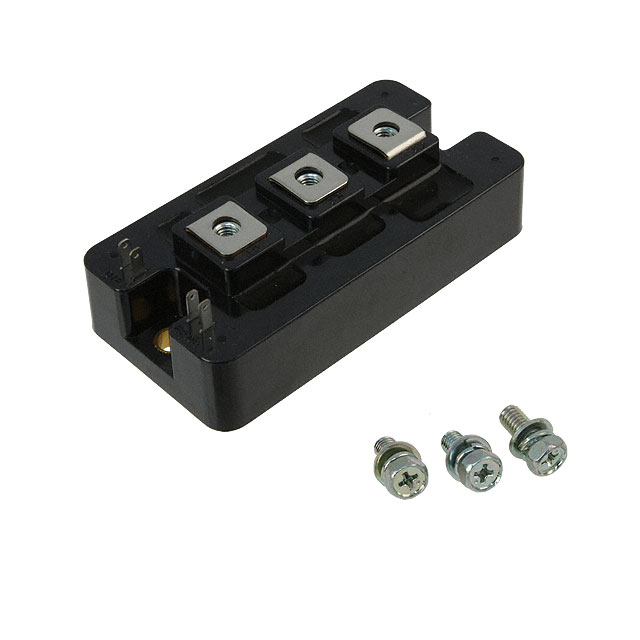

CM150DY-24H

Description：IGBT MOD 1200V 150A 1100W
Series：IGBTMOD™

SKU:b251bfad870e Category: IGBT Modules Brand: Powerex Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT MOD 1200V 150A 1100W
Series：IGBTMOD™
Mfr：Powerex Inc.
Package：Bulk
IGBT Type：-
Configuration：Half Bridge
Vce(on) (Max) @ Vge, Ic：3.4V @ 15V, 150A
Input：Standard
NTC Thermistor：No
Operating Temperature：-40°C ~ 150°C (TJ)
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：Module
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：150 A
Power - Max：1100 W
Current - Collector Cutoff (Max)：1 mA
Input Capacitance (Cies) @ Vce：30 nF @ 10 V

Download product information

CM150DY-24H

Overview

The CM150DY-24H is a dual IGBT module from the Powerex A-Series, rated for 1200 V collector-emitter voltage and 150 A continuous collector current. It features an isolated flange mount package with seven terminals. The device integrates built-in diodes within a series-connected, center-tapped two-element configuration. Designed for high-power switching applications, it supports junction temperatures up to 150 °C and complies with RoHS standards.

Feature Summary

Dual IGBT structure with integrated anti-parallel diodes
Isolated chassis mounting baseplate for thermal management
Center-tapped configuration suitable for specific inverter topologies

Applications

High power industrial motor drives
Medium voltage variable frequency drives
Industrial welding equipment

Part Context

This component belongs to the IGBTMOD A-Series line manufactured by Powerex Power Semiconductors. It serves as a discrete power switching element designed for robust performance in demanding electrical environments requiring high current handling capabilities at 1200 V blocking levels.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Engineering verification of pinout compatibility and thermal characteristics is required before considering alternative models.
