CM150RX-24S

$143.36

Description：IGBT MOD 1200V 150A 1150W
Series：IGBTMOD™

SKU:c34ba9acc42f Category: IGBT Modules Brand: Powerex Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT MOD 1200V 150A 1150W
Series：IGBTMOD™
Mfr：Powerex Inc.
Package：Bulk
IGBT Type：-
Configuration：Three Phase Inverter with Brake
Vce(on) (Max) @ Vge, Ic：2.15V @ 15V, 150A
Input：Standard
NTC Thermistor：Yes
Operating Temperature：-40°C ~ 150°C (TJ)
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：Module
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：150 A
Power - Max：1150 W
Current - Collector Cutoff (Max)：1 mA
Input Capacitance (Cies) @ Vce：15 nF @ 10 V

Download product information

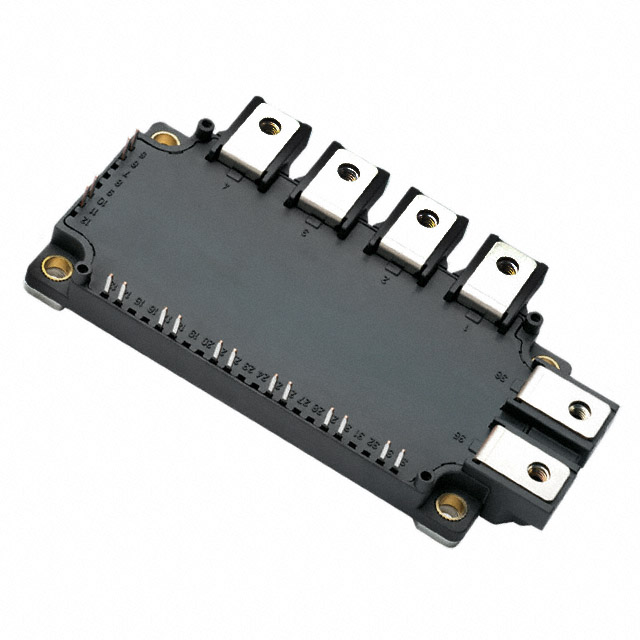

CM150RX-24S

Overview

The CM150RX-24S is a six IGBT NX-Series module manufactured by Powerex Inc. It features a maximum collector current of 150 Amperes and a collector-emitter breakdown voltage of 1200 Volts. The component is designed for high-power switching applications within the specified electrical ratings.

Feature Summary

Six IGBT configuration
NX-Series technology
High power switching capability

Applications

Industrial motor drives
Power conversion systems
High power switching circuits

Procurement Notes

Verify the specific datasheet version and manufacturer documentation to confirm exact electrical parameters and mechanical dimensions. Ensure compatibility with existing thermal management solutions and gate drive requirements before integration into final designs.

Selection Notes

Select this module for applications requiring a six-pack IGBT configuration with 150A current handling and 1200V blocking voltage. Consider the NX-Series performance characteristics and chassis mounting requirements when designing the system layout.

Part Context

This component belongs to the CM series of insulated gate bipolar transistor modules from Powerex, specifically utilizing the NX-Series architecture for improved switching performance in industrial power electronics applications.

Replacement Considerations

Cross-reference with other NX-Series variants such as CM75RX-24S or CM100RX-24S for lower current options. Verify pinout and thermal interface compatibility when substituting with similar six-pack IGBT modules.
