CM400HA-24A

$113.26

Description：IGBT MOD 1200V 400A 2350W
Series：IGBTMOD™

SKU:f2b237b1ebc1 Category: IGBT Modules Brand: Powerex Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT MOD 1200V 400A 2350W
Series：IGBTMOD™
Mfr：Powerex Inc.
Package：Bulk
IGBT Type：-
Configuration：Single
Vce(on) (Max) @ Vge, Ic：3V @ 15V, 400A
Input：Standard
NTC Thermistor：No
Operating Temperature：-40°C ~ 150°C (TJ)
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：Module
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：400 A
Power - Max：2350 W
Current - Collector Cutoff (Max)：1 mA
Input Capacitance (Cies) @ Vce：70 nF @ 10 V

Download product information

CM400HA-24A

Overview

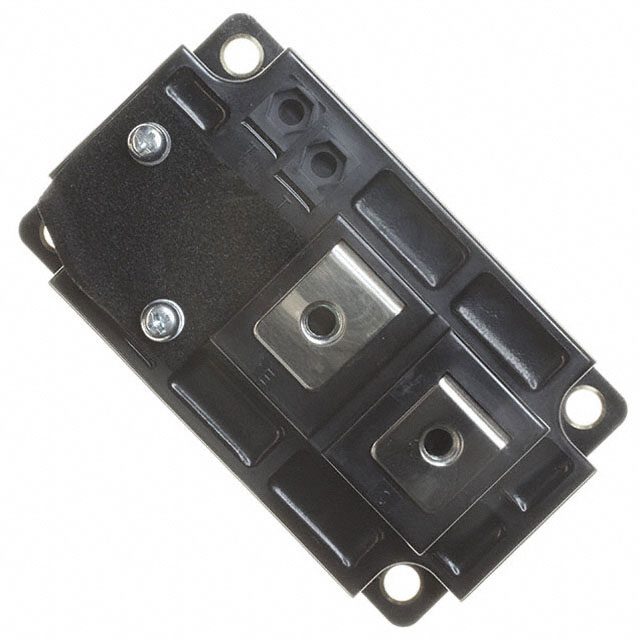

The CM400HA-24A is a single IGBT module from the A-Series, rated for 400 Amperes and 1200 Volts. It integrates one N-channel IGBT transistor with a reverse-connected super-fast recovery free-wheel diode. The components and interconnects are electrically isolated from the heat-sinking baseplate to facilitate system assembly. Designed for high-frequency operation between 20kHz and 25kHz, the module features low drive power requirements and low saturation voltage (VCE(sat)).

Feature Summary

Isolated baseplate design simplifies thermal management and system assembly.
Integrated discrete super-fast recovery free-wheel diode with 135ns recovery time.
Optimized for high-frequency switching applications up to 25kHz.

Applications

AC Motor Control
Motion and Servo Control Systems
Uninterruptible Power Supplies (UPS)
Welding Power Supplies
Laser Power Supplies

Part Context

This component belongs to the Powerex IGBTMOD™ A-Series line of insulated gate bipolar transistor modules. These modules are engineered specifically for robust performance in high-power switching environments, providing a compact solution that combines high current handling with efficient thermal dissipation through an isolated mounting interface.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Engineers should verify pinout compatibility, thermal resistance characteristics, and electrical ratings when considering alternative IGBT modules from other manufacturers or different series within the same product family.
