Product Detailed Parameters
- Description：IGBT MOD 1200V 600A 2080W
- Series：IGBTMOD™
- Mfr：Powerex Inc.
- Package：Bulk
- IGBT Type：-
- Configuration：Half Bridge
- Vce(on) (Max) @ Vge, Ic：2.65V @ 15V, 600A
- Input：Standard
- NTC Thermistor：No
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：600 A
- Power - Max：2080 W
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：140 nF @ 10 V
Download product information
Overview

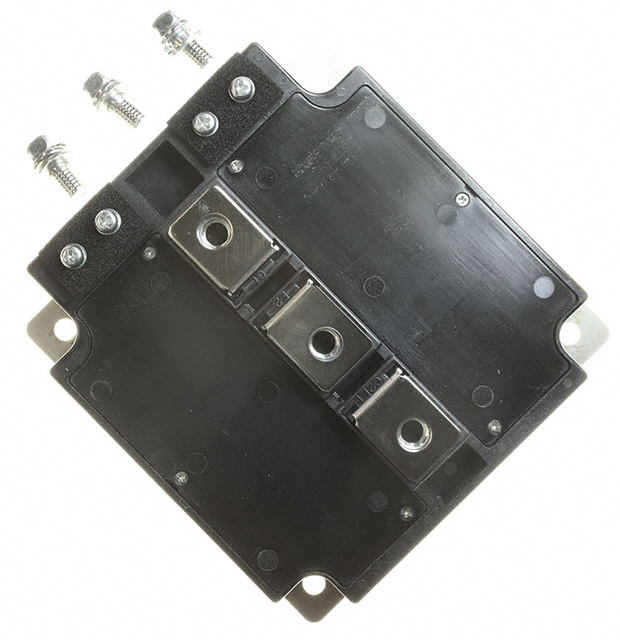

The CM600DU-24NF is a dual IGBT module manufactured by Powerex Inc. It features an N-channel configuration with integrated anti-parallel diodes, rated for a maximum collector-emitter voltage of 1200 V and a continuous collector current of 600 A. The device utilizes a flange mount package with seven terminals and isolated case connection. It supports a maximum operating temperature of 150 °C and complies with RoHS standards.
Feature Summary
- Dual insulated gate bipolar transistor structure with built-in freewheeling diodes
- High current handling capability suitable for heavy-duty power switching applications
- Electrically isolated flange mount design for efficient thermal management
Applications
- General purpose inverters
- Servo control systems
- High power switching circuits
Procurement Notes
Verify the specific manufacturer origin, as this part number appears in listings from both Powerex and Mitsubishi Electric Semiconductor. Confirm datasheet version and electrical parameter consistency before integration. Ensure compliance with project-specific material restrictions and environmental certifications.
Selection Notes
Select this module for applications requiring high current density and robust switching performance. Evaluate thermal resistance requirements against the flange mount interface. Compare saturation voltage characteristics with alternative series modules to optimize efficiency for the specific load profile.
Part Context
This component belongs to the NF-series IGBT modules designed for high-power industrial applications. It shares structural similarities with other dual IGBT packages but is distinguished by its specific 600 A/1200 V rating. The series is commonly utilized in medium to large-scale power conversion equipment.
Replacement Considerations
Cross-reference with CM600DU-24NFH for potential pin-compatible alternatives. Verify electrical parameters and mounting dimensions when substituting with equivalent models from other manufacturers such as Mitsubishi Electric.
