Product Detailed Parameters
- Description：IGBT MOD 1200V 600A 4050W
- Series：-
- Mfr：Powerex Inc.
- Package：Bulk
- IGBT Type：-
- Configuration：Half Bridge
- Vce(on) (Max) @ Vge, Ic：2.25V @ 15V, 600A
- Input：Standard
- NTC Thermistor：No
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：600 A
- Power - Max：4050 W
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：60 nF @ 10 V
Download product information
Overview

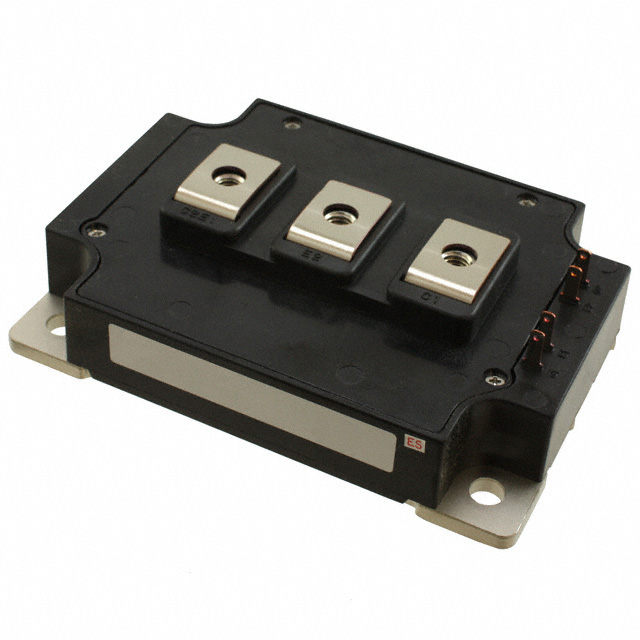

The CM600DY-24S is a dual IGBT module from the A-series manufactured by Powerex. It features a half-bridge configuration with two IGBT transistors and integrated reverse-connected super-fast recovery free-wheel diodes. The device supports a collector-emitter voltage of 1200 V and a continuous collector current of 600 A at 25°C. Key electrical parameters include a maximum power dissipation of 3.33 kW, a saturation voltage of 2 V, and a gate-emitter leakage current of 500 nA. The operational temperature range spans from -40°C to +150°C. The module utilizes an isolated baseplate design for simplified thermal management.
Feature Summary
- Half-bridge configuration integrating two IGBTs with discrete super-fast recovery free-wheel diodes
- Isolated baseplate construction for simplified system assembly and efficient heat sinking
- Low drive power requirements combined with low collector-emitter saturation voltage
Applications
- AC motor control systems
- Uninterruptible power supplies (UPS)
- Battery powered supply units
Procurement Notes
Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm RoHS compliance status and check for end-of-life notifications prior to procurement. Ensure supply chain stability as availability may vary. Validate datasheet revisions match specific production batches to guarantee parameter consistency.
Selection Notes
Select this module for high-power switching applications requiring robust current handling capabilities. The 1200 V rating suits medium-voltage industrial environments. Consider thermal resistance and mounting constraints due to the flange mount package. Evaluate gate drive compatibility with the specified leakage and saturation characteristics for optimal circuit performance.
Part Context
This component belongs to the Powerex IGBTMOD A-series line, designed specifically for high-power switching uses. It represents a dual-element solution within the broader portfolio of insulated gate bipolar transistor modules offered by the manufacturer for industrial power electronics.
Replacement Considerations
The CM600DY-24A is a documented variant within the same series offering identical 600 Amperes and 1200 Volts specifications. Verify pinout compatibility and thermal interface dimensions before substituting.
