Product Detailed Parameters
- Description：MOSFET 2N-CH 10PICOSTAR
- Series：NexFET™
- Mfr：Texas Instruments
- Package：Tape & Reel (TR),Cut Tape (CT),Bulk
- Technology：MOSFET (Metal Oxide)
- Configuration：2 N-Channel (Dual) Common Drain
- FET Feature：Logic Level Gate
- Drain to Source Voltage (Vdss)：-
- Current - Continuous Drain (Id) @ 25°C：-
- Rds On (Max) @ Id, Vgs：-
- Vgs(th) (Max) @ Id：2.3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs：40nC @ 10V
- Input Capacitance (Ciss) (Max) @ Vds：-
- Power - Max：2.5W
- Operating Temperature：-55°C ~ 150°C (TJ)
- Mounting Type：Surface Mount
- Package / Case：10-XFLGA
- Supplier Device Package：10-Picostar (3.37x1.47)
- Grade：-
- Qualification：-
Download product information
Overview

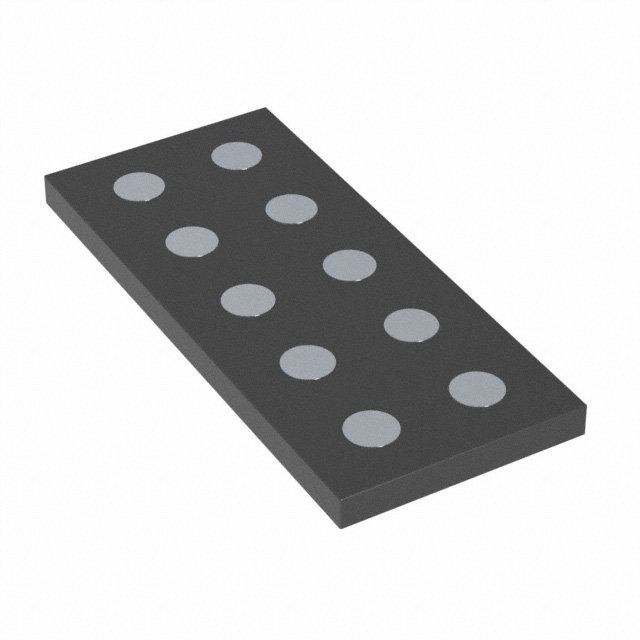

The CSD87501LT is an N-channel enhancement-mode MOSFET from the NexFET series by Texas Instruments. It features a maximum drain-source voltage of 30 V and a continuous drain current of 14 A. The device utilizes a PICOSTAR surface-mount package with 10 pins, measuring 3.42 mm in width, 1.52 mm in length, and 0.2 mm in height. Key electrical parameters include a maximum on-resistance of 11 mΩ, a typical gate charge of 31 nC at 10 V, and a maximum power dissipation of 2.5 W. It operates within a temperature range of -55 °C to +150 °C, with a maximum gate-source voltage of ±20 V.
Feature Summary
- NexFET technology for enhanced power efficiency
- PICOSTAR surface-mount packaging for compact designs
- Low on-resistance for reduced conduction losses
Applications
- Power management systems
- DC-DC converters
- Load switching applications
Procurement Notes
Verify the specific ordering suffix LT against official Texas Instruments documentation to ensure correct tape-and-reel configuration. Confirm that the PICOSTAR package dimensions align with your PCB footprint requirements. Cross-reference the 10-pin configuration with schematic symbols to prevent assembly errors during procurement.
Selection Notes
Select this component when a 30 V N-channel MOSFET with 14 A current capability is required in a low-profile surface-mount form factor. Ensure the application supports the 11 mΩ on-resistance for thermal management. Verify that the operating temperature range meets the system's environmental specifications.
Part Context
The CSD87501LT belongs to the NexFET family, which focuses on high-efficiency power switching solutions. This specific part integrates advanced silicon technologies to minimize losses in portable and industrial electronics. Its design targets applications requiring robust performance in space-constrained environments.
Replacement Considerations
Consult official substitution guides for compatible NexFET devices. Verify pinout compatibility and electrical parameter equivalence before replacing the original component.
