CW201212-10NJ

Fixed Inductors Overview

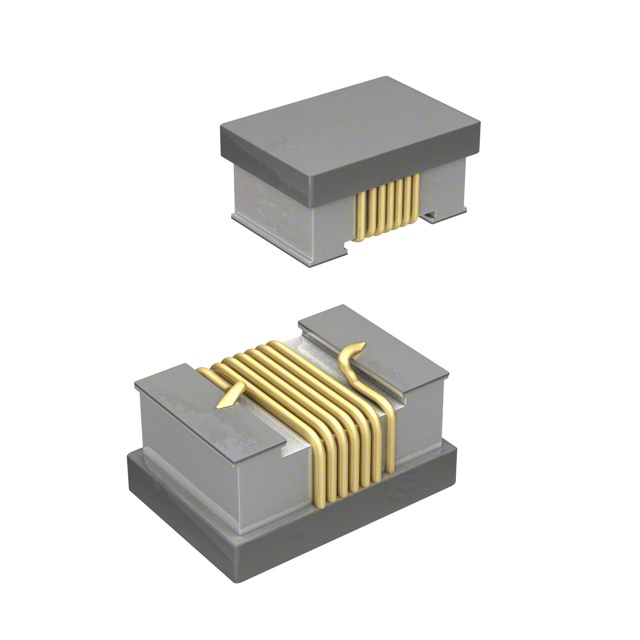

The Bourns Inc. CW201212-10NJ is a fixed inductor belonging to the CW201212 series of high Q chip inductors. It features an unshielded drum core and wirewound construction housed in a 0805 (2012 Metric) surface-mount package. The component provides an inductance value of 10 nH with a tolerance of ±5%. It supports a maximum DC current of 600 mA and exhibits a maximum DC resistance of 0.12 Ohms. The device is designed for applications requiring stable performance in compact electronic circuits.

Fixed Inductors Feature Summary

• Unshielded drum core wirewound construction
• High Q factor characteristics
• Compact 0805 surface-mount footprint

Fixed Inductors Applications

• RF signal processing circuits
• Impedance matching networks
• Filtering applications in communication devices

Fixed Inductors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to ensure correct tolerance and packaging specifications. Confirm that the component meets all relevant environmental compliance standards required for the target application before finalizing procurement orders.

Fixed Inductors Selection Notes

Select this component when a low inductance value with tight tolerance is required for RF applications. Consider the unshielded nature of the drum core design regarding potential magnetic interference with nearby components. Ensure the PCB layout accommodates the recommended pad dimensions specified in the datasheet for optimal soldering reliability.

Fixed Inductors Part Context

This part belongs to the CW201212 series, which includes various inductance values such as 12 nH and others within the same physical package. The series is characterized by high Q factors suitable for high-frequency operations. Different suffixes in the series may indicate variations in tolerance or packaging options.

Fixed Inductors Replacement Considerations

Direct substitutes must match the 10 nH inductance, 0805 package, and similar current ratings. Verify compatibility with existing circuit designs, particularly regarding Q factor and self-resonant frequency characteristics, when considering alternative manufacturers.
