DDB6U180N22RBPSA1

$69.03

Description：LOW POWER ECONO
Series：-

SKU:43132a88599a Category: IGBT Modules Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LOW POWER ECONO
Series：-
Mfr：Infineon Technologies
Package：Tray
IGBT Type：-
Configuration：-
Vce(on) (Max) @ Vge, Ic：-
Input：-
NTC Thermistor：-
Operating Temperature：-
Mounting Type：-
Package / Case：-
Supplier Device Package：-
Voltage - Collector Emitter Breakdown (Max)：-
Current - Collector (Ic) (Max)：-
Power - Max：-
Current - Collector Cutoff (Max)：-
Input Capacitance (Cies) @ Vce：-

Download product information

DDB6U180N22RBPSA1

Overview

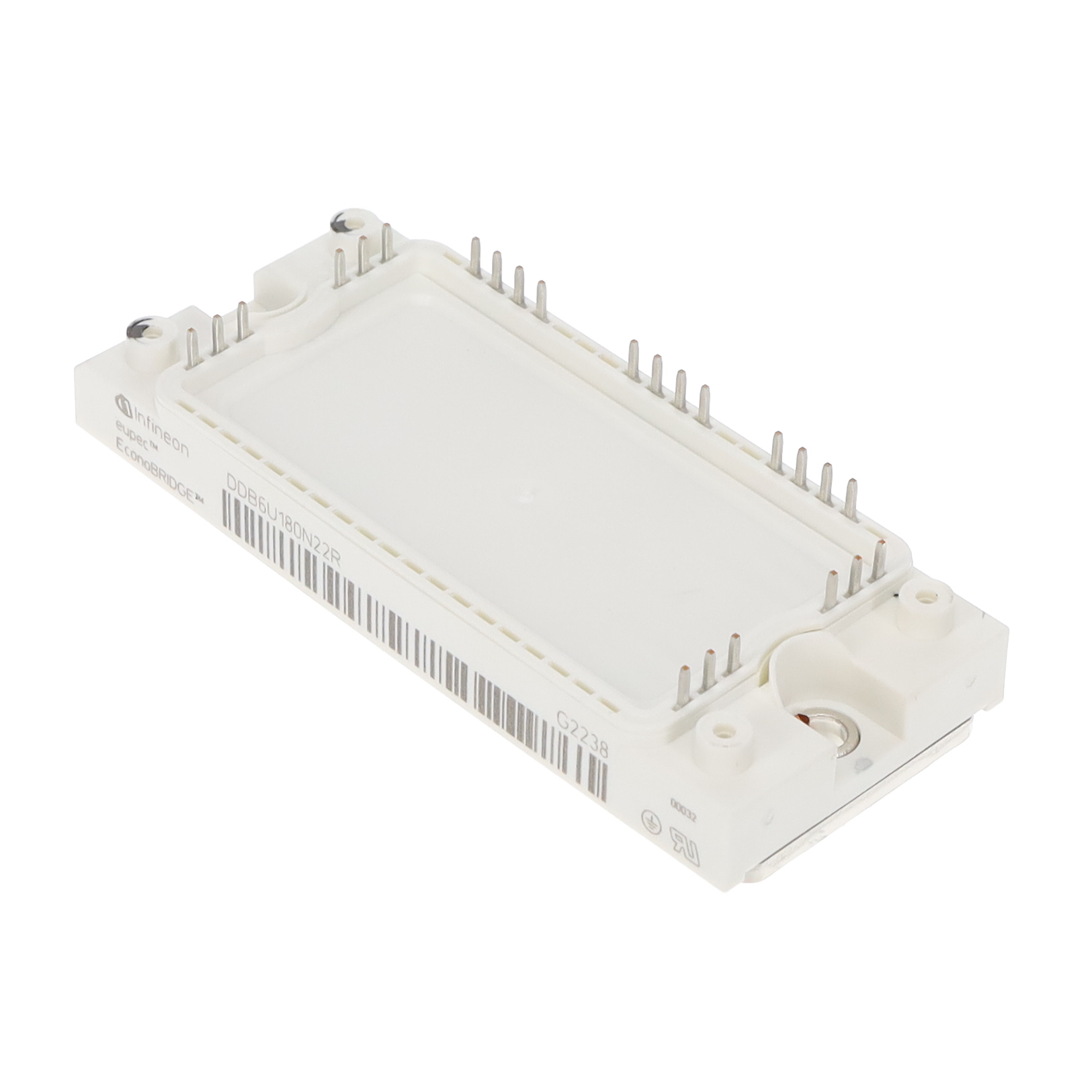

The DDB6U180N22RBPSA1 is a diode module manufactured by Infineon Technologies, belonging to the EconoBRIDGE product family. It features a half-controlled bridge topology with integrated brake chopper functionality. The device utilizes silicon technology and is housed in an EconoBRIDGE package designed for screw mounting. Key electrical parameters include a maximum repetitive reverse voltage of 2200 V and a root mean square current rating of 180 A. The module supports a peak surge forward current of 1600 A and operates within a junction temperature range from -40°C to +150°C.

Feature Summary

Integrates a half-controlled bridge topology with a built-in brake chopper for dynamic braking applications.
Utilizes the EconoBRIDGE packaging format to facilitate efficient thermal management and compact system integration.
Incorporates pressure contact technology to ensure reliable electrical connections and robust mechanical stability under high power conditions.

Applications

Motor drive systems requiring regenerative energy handling
Industrial frequency converters
Uninterruptible power supply (UPS) units

Procurement Notes

Verify the exact suffix against official Infineon documentation to confirm specific binning or testing variations. Confirm RoHS compliance status through the manufacturer's latest declaration. Ensure the ordering part number matches the required thermal interface material specifications if applicable. Cross-reference datasheet revisions to validate parameter consistency before finalizing procurement orders.

Selection Notes

Select this component for applications demanding high surge current capability and integrated braking functions. Evaluate the thermal resistance characteristics against the specific heatsink design to maintain junction temperatures within safe limits. Consider the physical dimensions of the EconoBRIDGE package during PCB layout and mechanical assembly planning to ensure adequate clearance and mounting compatibility.

Part Context

This module is part of Infineon's broader portfolio of power semiconductor solutions, specifically targeting high-power industrial drives. It complements other EconoBRIDGE variants that offer different voltage ratings or current capacities. The series is designed to meet stringent industrial reliability standards and provides a standardized form factor for easy replacement in existing converter designs.

Replacement Considerations

Direct substitutes may include other Infineon EconoBRIDGE modules with matching 2200V ratings and similar current capabilities, such as the DDB6U180N16RRB37BPSA1, provided voltage derating is acceptable. Verify pinout compatibility and thermal performance metrics before substituting with components from other manufacturers.
