Product Detailed Parameters
- Description：MOSFET, DFN1006-3, 60V, 0.35A, 1
- Series：-
- Mfr：Diotec Semiconductor
- Package：Tape & Reel (TR),Cut Tape (CT)
- FET Type：N-Channel
- Technology：MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss)：60 V
- Current - Continuous Drain (Id) @ 25°C：350mA
- Drive Voltage (Max Rds On, Min Rds On)：2.5V, 10V
- Rds On (Max) @ Id, Vgs：1.4Ohm @ 500mA, 10V
- Vgs(th) (Max) @ Id：1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs：1.9 nC @ 10 V
- Vgs (Max)：±20V
- Input Capacitance (Ciss) (Max) @ Vds：32 pF @ 25 V
- FET Feature：-
- Power Dissipation (Max)：223mW
- Operating Temperature：-55°C ~ 150°C (TJ)
- Grade：Automotive
- Qualification：AEC-Q101
- Mounting Type：Surface Mount
- Supplier Device Package：DFN1006-3
- Package / Case：SC-101, SOT-883
Download product information
Overview

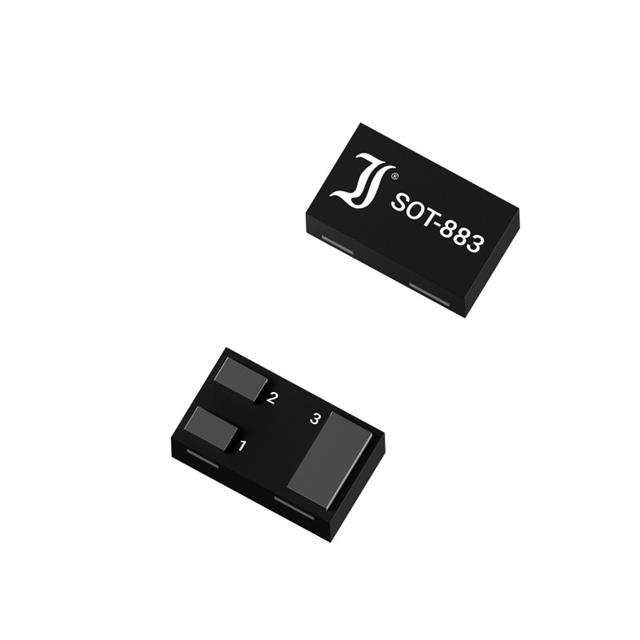

The DI0A35N06PGK-AQ is an N-Channel Power MOSFET in a SOT-883 (~DFN1006-3) package. It features a drain-source voltage (VDSS) of 60 V and continuous drain current (ID) of 350 mA at 25°C. The device has a maximum power dissipation (PD) of 223 mW and operates within a junction temperature range of -55 to +150°C. The on-state resistance (RDS(on)) is less than 1.4 Ω at VGS = 10 V. This variant carries the -AQ suffix, indicating AEC-Q101 qualification for automotive applications.
Feature Summary
- Tiny, space-saving package with low profile height
- Low on-state resistance and fast switching times
- Low gate charge for efficient driving
- Qualified to AEC-Q101 automotive standards
Applications
- Power Management Units
- Battery powered devices
- Load Switches
- Polarity Protection
Procurement Notes
Verify that the specific ordering code includes the -AQ suffix to ensure AEC-Q101 qualification status. Confirm package type matches SOT-883 requirements. Check RoHS compliance documentation. Ensure storage conditions remain within specified limits. Validate supplier authenticity through official Diotec channels.
Selection Notes
Select this component for compact designs requiring 60 V blocking capability. Suitable for low-current switching tasks under 350 mA. Consider thermal constraints due to small footprint. Verify gate drive compatibility with low gate charge characteristics. Ensure application meets commercial or industrial grade reliability needs.
Part Context
This part belongs to Diotec's N-Channel Power MOSFET lineup designed for space-constrained electronics. The DFN1006-3 form factor enables high-density PCB layouts. Automotive qualification expands potential use cases into vehicle electronics where reliability standards are stringent.
