DI0A35N06PGK

$0.03

Description：DI0A35N06PGK
Series：-
Mfr：Diotec Semiconductor
Package：Bulk

SKU:a41bd57589e6 Category: Single FETs, MOSFETs Brand: Diotec Semiconductor

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：DI0A35N06PGK
Series：-
Mfr：Diotec Semiconductor
Package：Bulk
FET Type：N-Channel
Technology：MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)：60 V
Current - Continuous Drain (Id) @ 25°C：350mA
Drive Voltage (Max Rds On, Min Rds On)：2.5V, 10V
Rds On (Max) @ Id, Vgs：1.4Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id：1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs：1.9 nC @ 10 V
Vgs (Max)：±20V
Input Capacitance (Ciss) (Max) @ Vds：32 pF @ 25 V
FET Feature：-
Power Dissipation (Max)：223mW
Operating Temperature：-55°C ~ 150°C (TJ)
Grade：-
Qualification：-
Mounting Type：Surface Mount

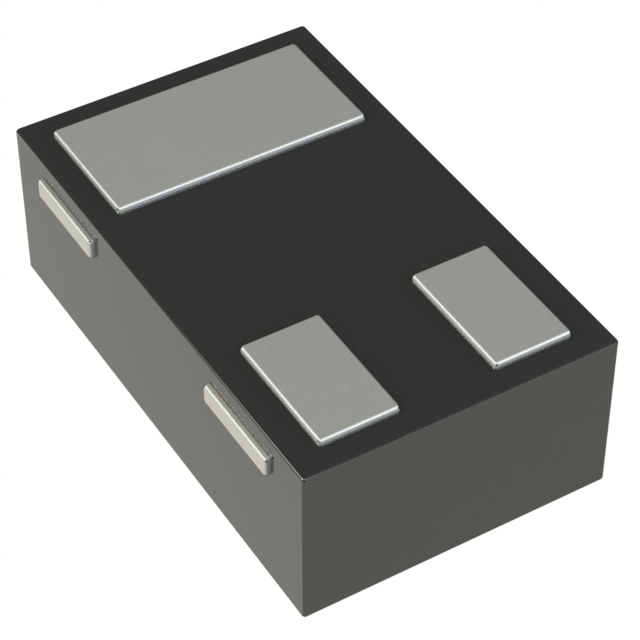

Supplier Device Package：DFN1006-3
Package / Case：SC-101, SOT-883

Download product information

DI0A35N06PGK

Overview

The DI0A35N06PGK is an N-Channel Power MOSFET in a SOT-883 (DFN1006-3) package. It features a drain-source voltage of 60 V and a continuous drain current of 350 mA at 25°C. The on-state resistance is less than 1.4 Ω at VGS=10V. Maximum power dissipation is 223 mW, with a junction temperature range of -55 to +150°C. Dynamic characteristics include a total gate charge of 1.9 nC and turn-on delay of 3.8 ns.

Feature Summary

Tiny, space-saving package with low profile height
Low on-state resistance for efficient conduction
Fast switching times with low gate charge
Compliant to RoHS, REACH, and Conflict Minerals regulations

Applications

Power Management Units
Battery powered devices
Load Switches
Polarity Protection

Procurement Notes

Verify the specific suffix when ordering. The standard version is commercial/industrial grade. Suffix -Q indicates AEC-Q101 compliance, while -AQ denotes AEC-Q101 qualification. Confirm these designations match project requirements before procurement.

Selection Notes

Select this component for applications requiring compact size and low power handling. Ensure the 60 V rating and 350 mA current limit suit the circuit. Consider thermal resistance of 560 K/W for heat management. Verify if automotive grades are needed for specific reliability standards.

Part Context

This part belongs to Diotec Semiconductor's lineup of small-signal MOSFETs designed for portable electronics. It serves as a compact alternative to larger packages like SOT-23 or SOT-323 where board space is limited. The DFN1006-3 form factor supports automated surface-mount assembly processes.
