DIT050N06

$1.01

Description：MOSFET TO220AB N 60V 0.014OHM
Series：-
Mfr：Diotec Semiconductor
Package：Tube

SKU:34702ce2389d Category: Single FETs, MOSFETs Brand: Diotec Semiconductor

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MOSFET TO220AB N 60V 0.014OHM
Series：-
Mfr：Diotec Semiconductor
Package：Tube
FET Type：N-Channel
Technology：MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)：60 V
Current - Continuous Drain (Id) @ 25°C：50A (Tc)
Drive Voltage (Max Rds On, Min Rds On)：10V
Rds On (Max) @ Id, Vgs：20mOhm @ 20A, 10V
Vgs(th) (Max) @ Id：2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs：50 nC @ 10 V
Vgs (Max)：±20V
Input Capacitance (Ciss) (Max) @ Vds：2050 pF @ 30 V
FET Feature：-
Power Dissipation (Max)：85W (Tc)
Operating Temperature：-55°C ~ 175°C (TJ)
Grade：-
Qualification：-
Mounting Type：Through Hole

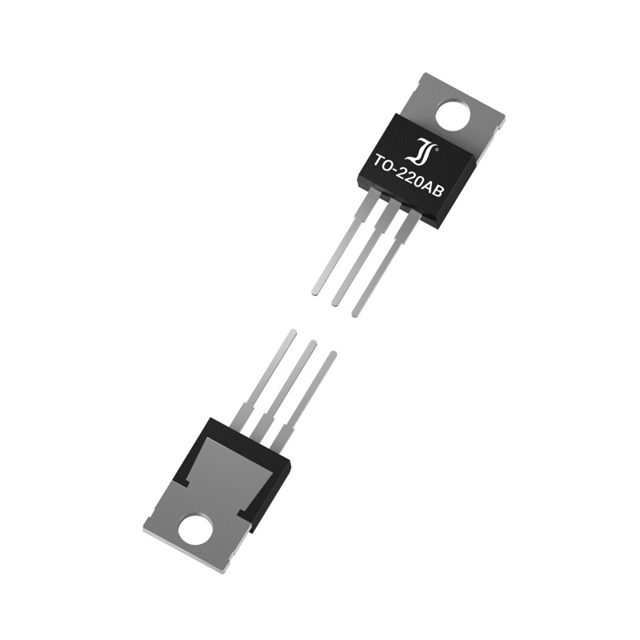

Supplier Device Package：TO-220AB
Package / Case：TO-220-3

Download product information

DIT050N06

Overview

The DIT050N06 is an N-Channel Power MOSFET manufactured by Diotec Semiconductor, designed for commercial and industrial applications. It features a TO-220AB package with a drain-source voltage (VDSS) of 60 V and a continuous drain current (ID) of 50 A at 25°C. The device exhibits a typical on-state resistance (RDS(on)) of 14 mΩ and supports a power dissipation (PD) of 85 W. Key electrical parameters include a gate-source voltage (VGSS) of ±20 V, a threshold voltage (VGS(th)) ranging from 1.4 V to 2.5 V, and a total gate charge (Qg) of 50 nC. Thermal characteristics specify a junction-to-case thermal resistance (RthJC) of 1.7 K/W, with an operating temperature range of -55°C to +175°C.

Feature Summary

Advanced Trench Technology for low on-state resistance
Fast switching times with low gate charge
Avalanche rated capability
Compliant to RoHS, REACH, and Conflict Minerals regulations

Applications

DC/DC Converters
Power Supplies
DC Drives
Power Tools

Procurement Notes

Verify the specific ordering suffix and packaging configuration before procurement, as standard versions are packed in tubes or cardboards. Confirm that the component meets the required commercial grade reliability standards, as it is not designated for automotive qualification. Ensure the design accounts for the specified thermal resistance and maximum junction temperature limits during operation.

Selection Notes

Select this component for circuits requiring high current handling up to 50 A with low conduction losses. The 60 V rating suits low-voltage DC systems. Evaluate the thermal management requirements based on the 1.7 K/W junction-to-case resistance. Consider the avalanche energy rating if inductive load switching is present. Verify compatibility with the TO-220AB footprint and soldering conditions.

Part Context

This part belongs to Diotec Semiconductor's discrete semiconductor portfolio, specifically within the MOSFET category. It utilizes advanced trench technology to achieve performance metrics suitable for general-purpose power switching. The manufacturer emphasizes compliance with environmental directives such as RoHS and REACH for this commercial-grade product line.
