DMP2056UCA4-7

$0.08

Description：MOSFET BVDSS: 8V~24V X4-DSN0808-
Series：-

SKU:d89c49324b12 Category: FET, MOSFET Arrays Brand: Diodes Incorporated

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MOSFET BVDSS: 8V~24V X4-DSN0808-
Series：-
Mfr：Diodes Incorporated
Package：Tape & Reel (TR)
Technology：-
Configuration：-
FET Feature：-
Drain to Source Voltage (Vdss)：-
Current - Continuous Drain (Id) @ 25°C：-
Rds On (Max) @ Id, Vgs：-
Vgs(th) (Max) @ Id：-
Gate Charge (Qg) (Max) @ Vgs：-
Input Capacitance (Ciss) (Max) @ Vds：-
Power - Max：-
Operating Temperature：-
Mounting Type：Surface Mount
Package / Case：4-XFDFN
Supplier Device Package：X4-DSN0808-4
Grade：-
Qualification：-

Download product information

DMP2056UCA4-7

Overview

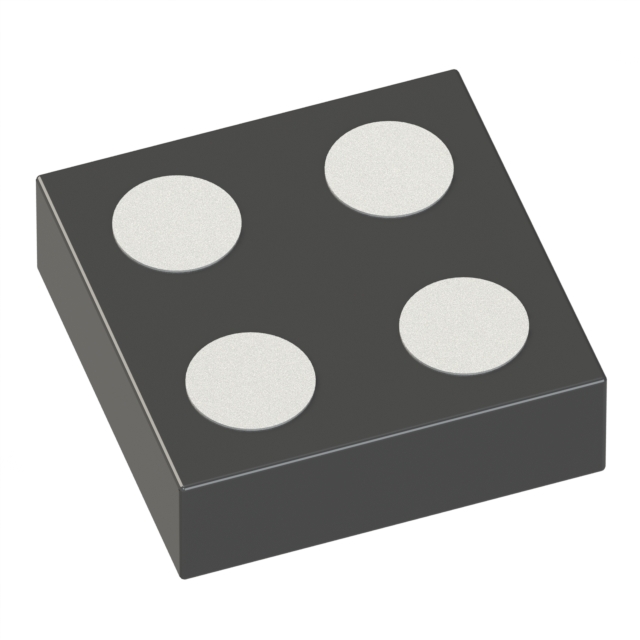

The DMP2056UCA4-7 is a P-channel enhancement mode MOSFET in an ultra-small X4-DSN0808-4 package. It features a -20V drain-source voltage rating and low on-state resistance of 64mΩ at VGS=-4.5V, supporting up to -4.4A continuous drain current. The device includes built-in gate-source protection diodes against ESD and operates within a temperature range of -55°C to +150°C.

Feature Summary

Ultra-small 0.8mm x 0.8mm footprint for space-constrained designs
Integrated gate-source protection diode for enhanced ESD robustness
Optimized for high-efficiency power management with minimized on-state resistance

Applications

Portable electronic devices
Load switching circuits
Power-management functions

Procurement Notes

Verify the specific ordering suffix '-7' corresponds to the 10,000-unit tape and reel carrier configuration. Confirm that the X4-DSN0808-4 package dimensions align with your PCB pad layout requirements. Ensure compliance with RoHS 3 and halogen-free specifications if mandated by your project standards.

Selection Notes

Select this component when board real estate is limited due to its compact 0.8mm x 0.8mm package. Consider the -20V breakdown voltage and low RDS(ON) characteristics for efficient load switching applications. Verify thermal dissipation capabilities based on your specific PCB copper area and ambient operating conditions.

Part Context

This part belongs to Diodes Incorporated's DMP series of P-channel MOSFETs. It utilizes the X4-DSN0808-4 surface-mount package designed for high-density mounting. The device is manufactured in IATF 16949 certified facilities, ensuring quality control suitable for automotive and industrial environments.

Replacement Considerations

Direct substitutes must match the X4-DSN0808-4 package and -20V rating. Verify pinout compatibility and electrical parameters such as RDS(ON) and Qg before implementation.
